Products
CNC Machining
Ultrasonic-Assisted Machining Center
VU-5
Product Overview
The VU-5 is engineered for machining high-hardness and composite materials. With a highly rigid and stable structure, it effectively suppresses cutting vibration while maintaining consistent machining accuracy. At its core, the VU-5 features an automatic frequency tracking system that dynamically optimizes amplitude and frequency based on material characteristics. Combined with a dedicated dust-resistant design, it significantly extends the service life of critical precision components. Capable of processing both metal and non-metal materials on a single platform, the VU-5 offers exceptional operational flexibility—making it a premium solution for high-efficiency, long-life precision machining.
Product Introduction

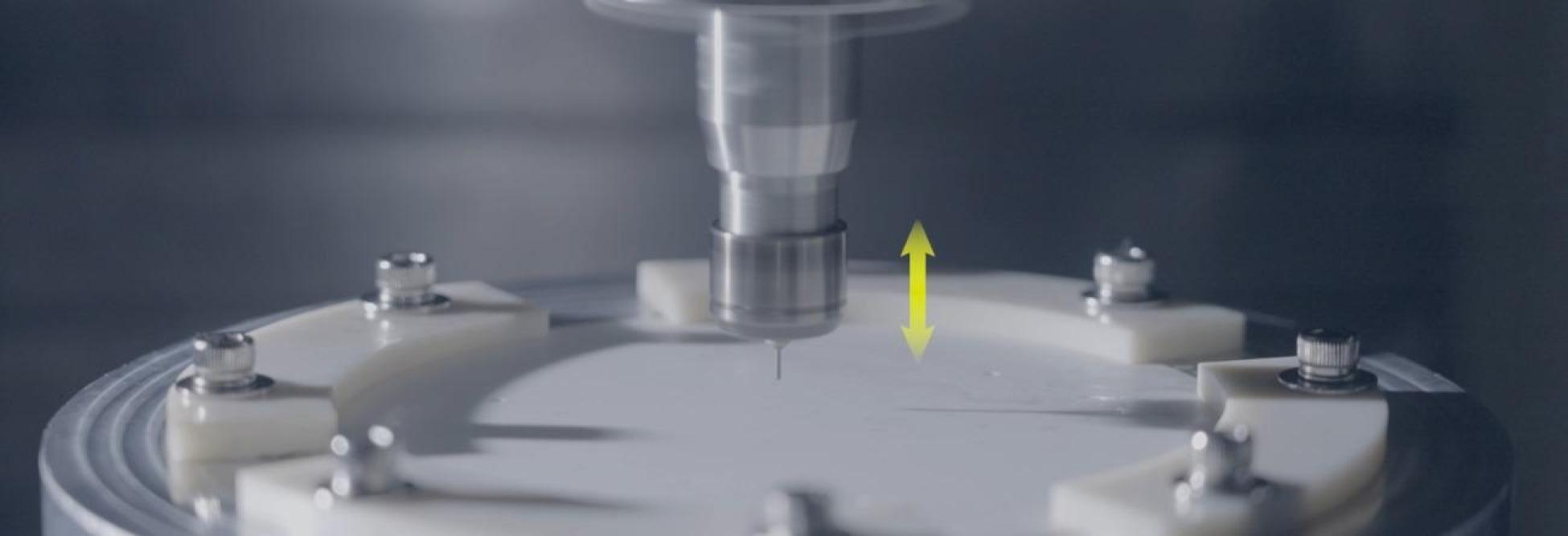

Wireless-Powered Ultrasonic Spindle
The ultrasonic spindle features a standard speed of 20,000 rpm, delivering high axial amplitude with low runout to enhance cutting efficiency while maintaining micro-machining precision. Its wireless power transmission and intelligent temperature control design minimize interference and suppress thermal deformation. Combined with CTS (coolant-through-spindle), a dust-resistant structure, and long-life lubrication, the spindle ensures superior machining stability and extended tool life.
Silicon Carbide Machining
Silicon carbide is extremely difficult to machine due to rapid tool wear and the risk of cracking or edge chipping during processing. Ultrasonic-assisted machining significantly enhances efficiency while reducing edge chipping and surface damage.
Alumina Ceramics Machining
Although alumina ceramics offer high hardness, heat resistance, and biocompatibility, their brittleness and complex surface requirements make machining particularly challenging. By leveraging VU-5 ultrasonic-assisted machining, cutting forces are effectively reduced—enabling the production of precision components with complete geometries, stable quality, excellent surface finish, and improved yield.
Monocrystalline Silicon Machining
Conventional micro‑drilling of monocrystalline silicon often suffers from instability and rapid tool wear. By integrating VU-5 ultrasonic-assisted machining, high-frequency micro-vibration effectively dissipates cutting heat and removes debris, enabling stable and highly precise micro-hole drilling while significantly extending tool life. This results in superior process stability and improved cost efficiency.
" Access the e-catalog for complete technical data and configuration options "
Introduction Video
Product Specifications
Item
Value
X-Axis Travel
510 mm
Y-Axis Travel
400 mm
Z-Axis Travel
350 mm
X-Axis Rapid Traverse
48 m/min
Y-Axis Rapid Traverse
48 m/min
Z-Axis Rapid Traverse
48 m/min
Spindle Taper
7/24 Taper No.30
Spindle Speed
20,000 (opt. 24,000) rpm
Spindle Motor
SIEMENS : 1.5/2.2｜FANUC,MITSUBISHI : 2.2/3.7
Table Length
850 mm
Table Width
410 mm
Max. Table Load
250 kg
Tool Capacity
20 (opt. 30) pcs
Max. tool Weight
3 kg
Machine Width
2,000 mm
Machine Depth
3,810 mm
Machine Height
2,560 mm
Machine Weight
4,200 kg
