VC-711
Product Overview
The VC-711 is a high-precision vertical machining center designed for mold and die applications. Built with a high dynamic rigidity structure and an oil-air lubricated spindle, it delivers low heat generation and extended spindle life. The machine supports high-speed, high-precision machining control and features a BBT dual-contact tool holder system to enhance machining stability and surface finish quality. Ideal for mold manufacturing and precision component machining, the VC-711 achieves an excellent balance between productivity and machining accuracy.
Product Introduction
High-Rigidity Structure & Transmission
The machine column features a wide-span design with an optimized force flow path. Through finite element analysis (FEA), including static, modal, and structural optimization, it ensures high dynamic rigidity and stable machining performance. Combined with a 10 mm lead high-precision ballscrew and high-rigidity □45 mm roller linear guideways on all three axes, the machine delivers enhanced transmission accuracy and superior load-bearing capability.
High-Precision Thermally Stable Spindle
The spindle adopts oil-air lubrication and an oil-cooled sleeve design, effectively dissipating heat generated during high-speed operation and minimizing the impact of thermal expansion. The 20,000 rpm built-in spindle, combined with a floating bearing structure, maintains stable preload and extends service life. Standard BBT dual-contact tool holders further enhance clamping rigidity and machining quality.
High-Speed & High-Precision Control

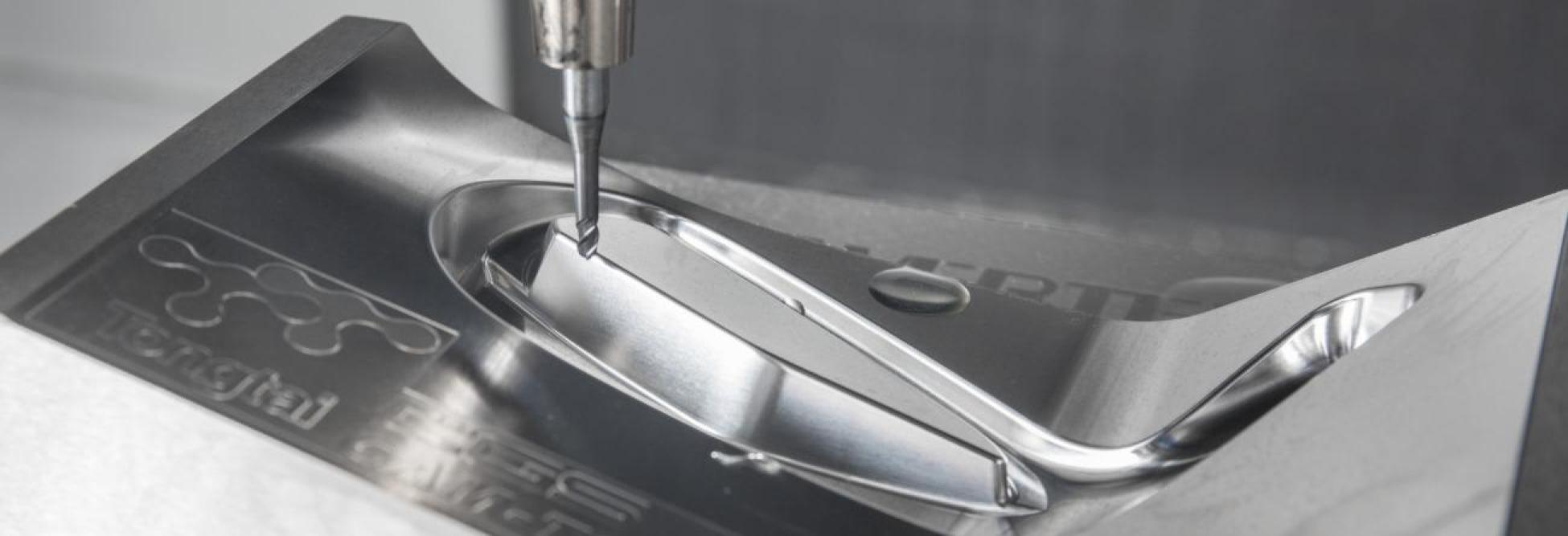

Equipped with an advanced CNC controller, the machine supports high-speed, high-precision machining applications. The machine also features Super Smooth Surface (SSS) control, which compensates for large-range contour path errors and enhances surface finish quality, making it especially suitable for high-precision mold machining.
" Access the e-catalog for complete technical data and configuration options "
Introduction Video
Product Specifications
Item
Value
X-Axis Travel
1,100 mm
Y-Axis Travel
710 mm
Z-Axis Travel
710 mm
X-Axis Rapid Traverse
24 m/min
Y-Axis Rapid Traverse
24 m/min
Z-Axis Rapid Traverse
24 m/min
Spindle Taper
7/24 Taper No.40
Spindle Speed
12,000 (opt.15,000/20,000) rpm
Spindle Motor
11/7.5 [opt. (15/11/7.5)/(40/30)] kW
Table Length
1,200 mm
Table Width
710 mm
Max. Table Load
1,000 kg
Tool Capacity
24 (opt. 30) pcs
Max. Tool Weight
7 kg
Machine Width
2,900 mm
Machine Depth
3,330 mm
Machine Height
3,10 0mm
Machine Weight
9,000 kg
