Product Overview

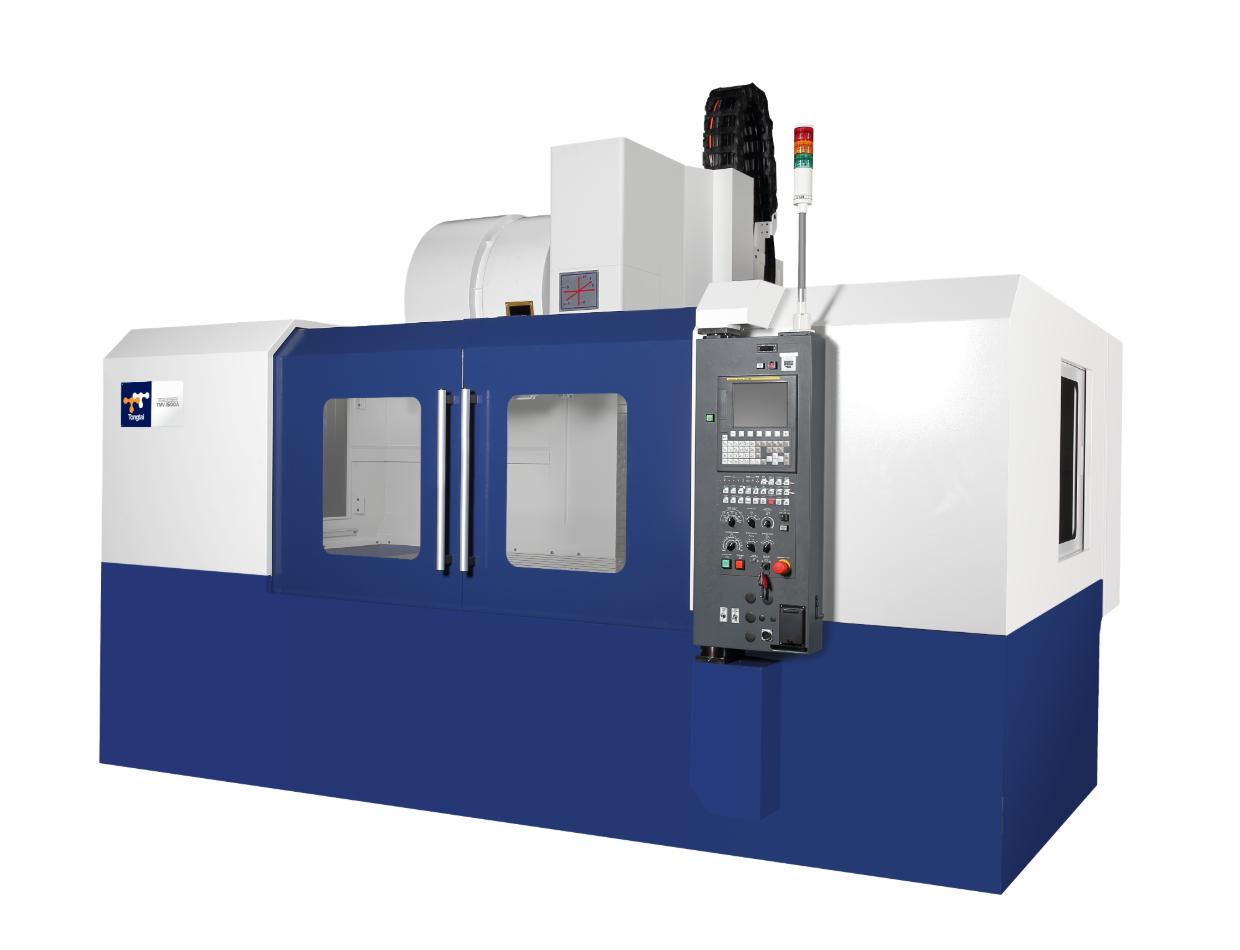

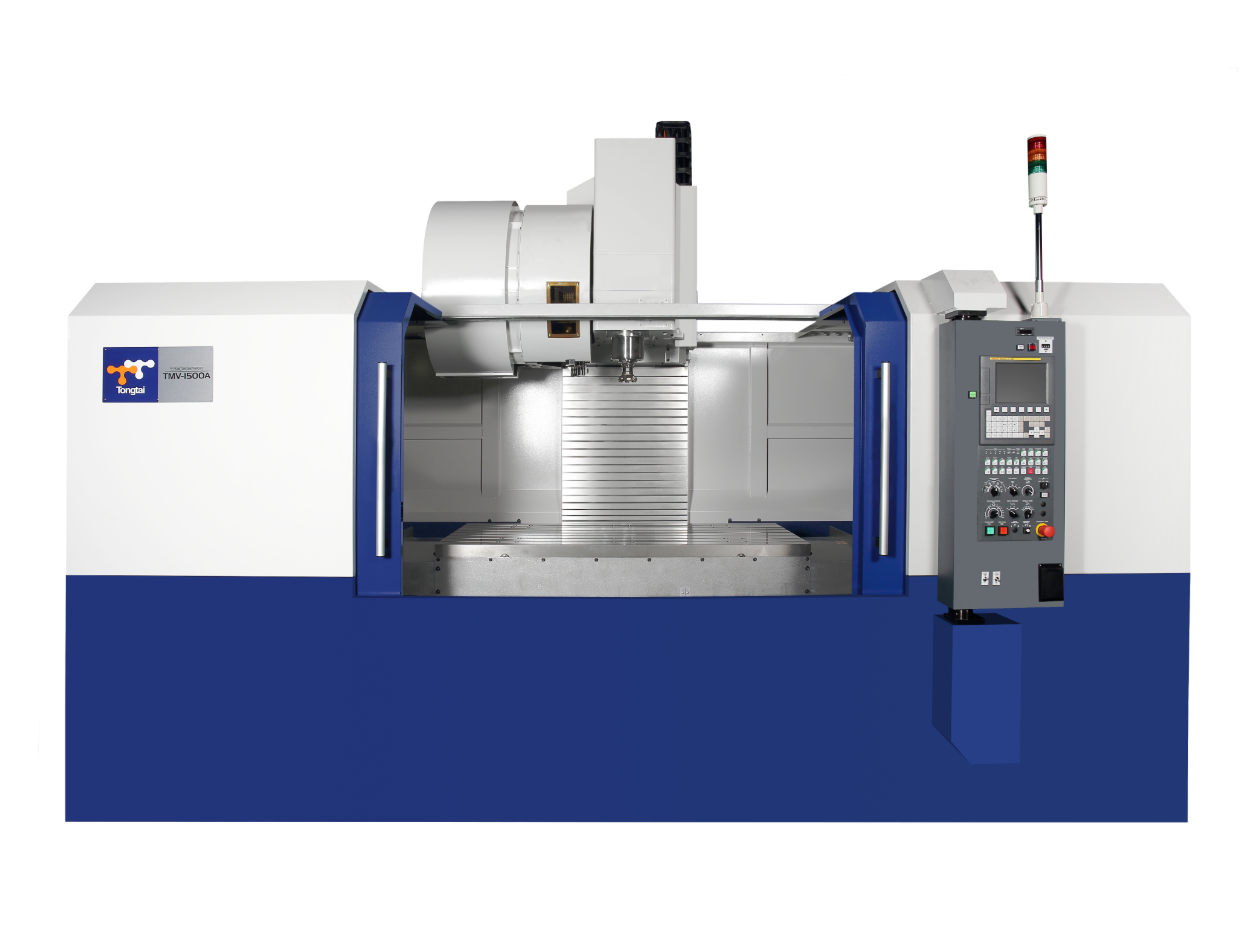

The Tongtai TMV-1500A Vertical Machining Center features a rigid monoblock casting with four Y-axis guideways for high deformation resistance. It offers a 1,525 mm X-axis travel, an 1,800 kg table load, and configurable BT-40 or BT-50 spindles. Equipped with dual screw conveyors and centralized maintenance access, it optimizes production output and daily service efficiency.
Product Introduction

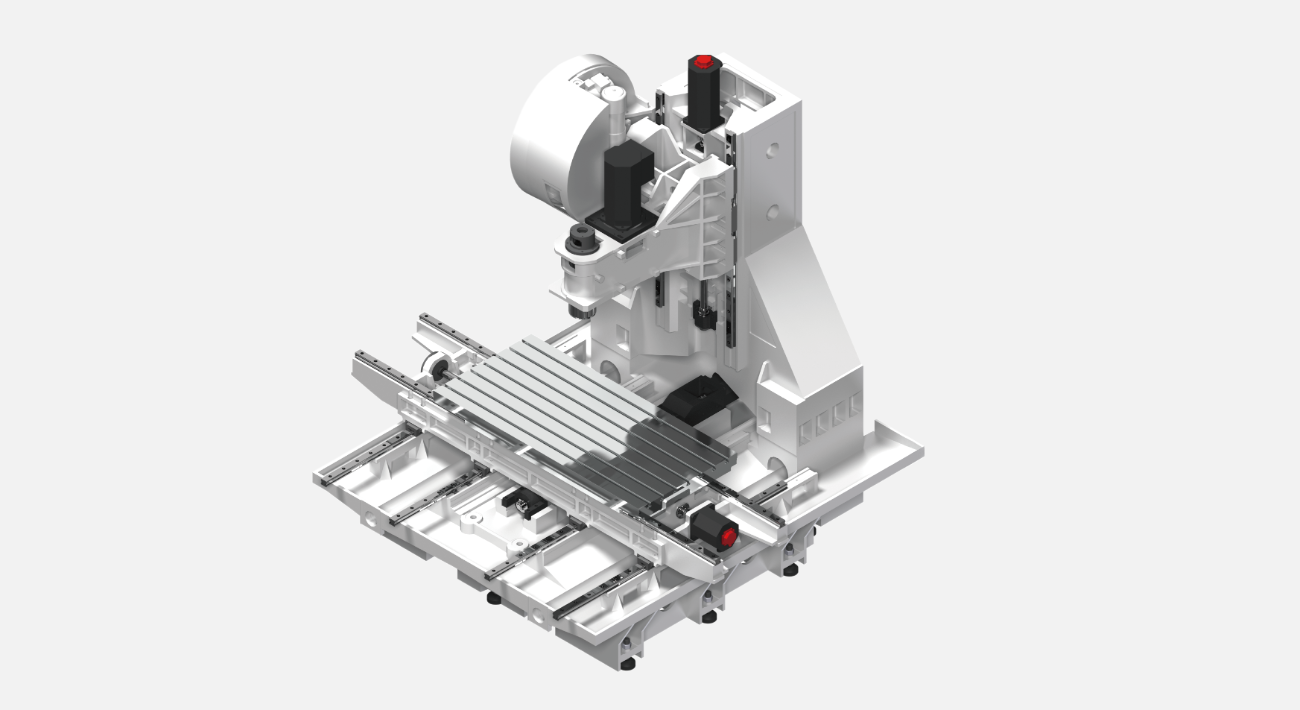

High-Rigidity Structure
The machine is constructed with high-quality one-piece cast iron components and optimized through Finite Element Analysis (FEA) to ensure excellent dynamic and static rigidity. The Y-axis is supported by four guideways, providing robust support for the table and significantly reducing overhang deflection during movement along the X-axis.

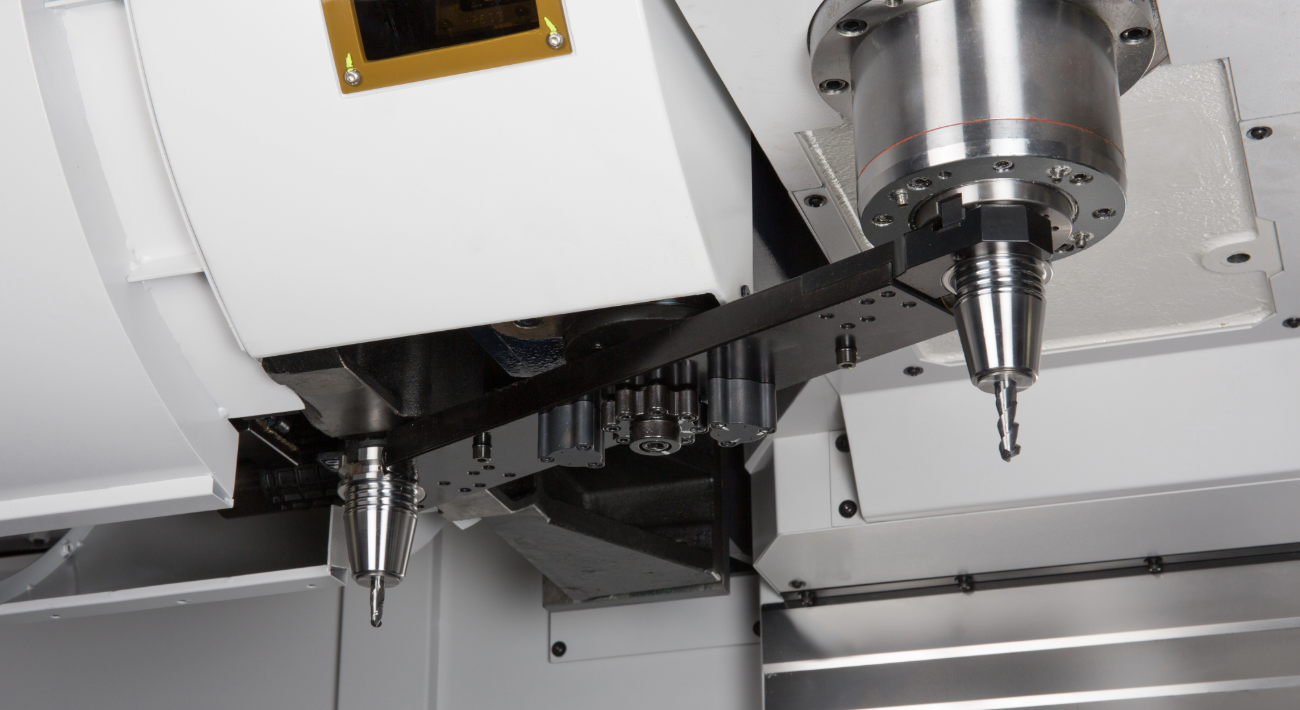

Multiple Spindle and Tool Changing
The machine is equipped as standard with a BT-40 belt-driven spindle and offers a variety of optional spindle configurations, including high-speed spindles and high-torque BT-50 spindles to meet diverse machining requirements. The tool changing mechanism features a roller cam design that delivers high precision, low noise, and reliable tool retention. With a tool-to-tool (T-to-T) change time as fast as 3.0 seconds, the system maximizes machining efficiency and productivity.
User-Friendly Design

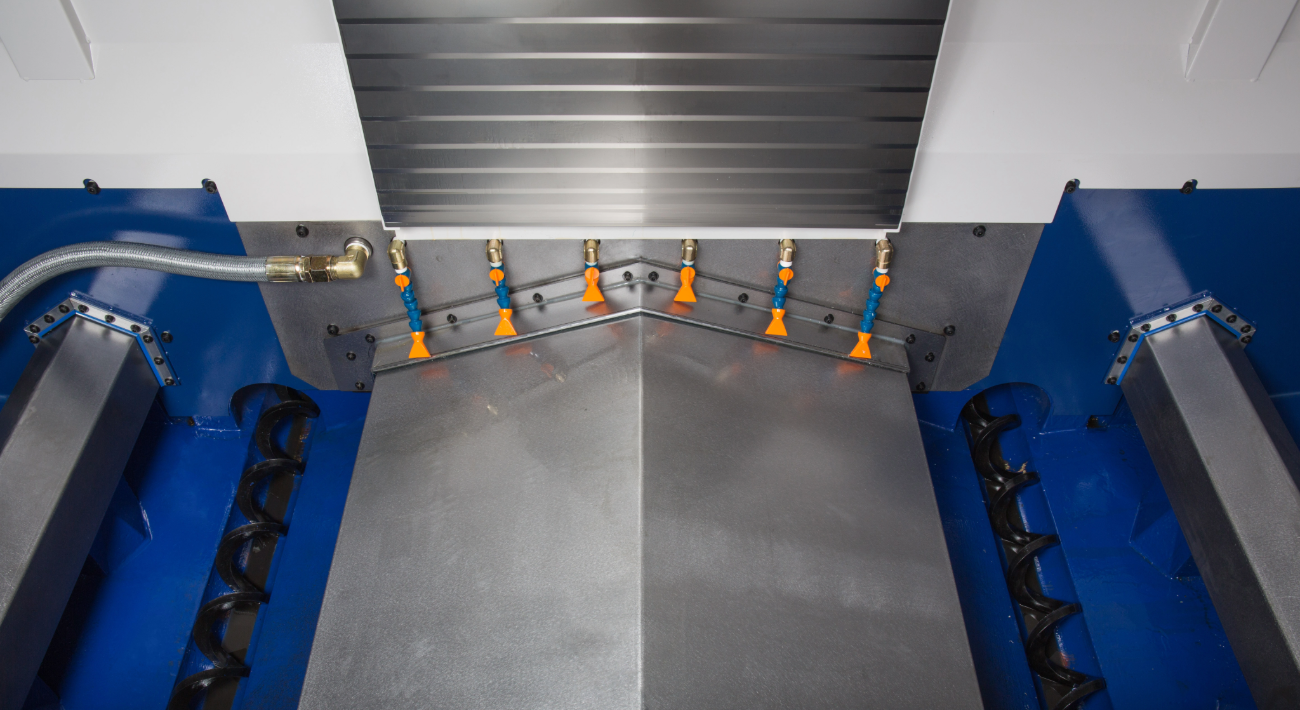

The machine is equipped with dual chip augers and a bed flushing system, enabling efficient evacuation of large volumes of chips and preventing chip accumulation during machining. All key maintenance components, including pneumatic system parts and the lubrication pump, are conveniently centralized at the rear of the machine, allowing operators to perform routine inspections and maintenance quickly and efficiently.
" Access the e-catalog for complete technical data and configuration options "
Product Specifications
Item
Value
X-Axis Travel
1,525 mm
Y-Axis Travel
762 mm
Z-Axis Travel
710 mm
X-Axis Rapid Traverse
18 (opt. 30) m/min
Y-Axis Rapid Traverse
18 (opt. 30) m/min
Z-Axis Rapid Traverse
18 (opt. 30) m/min
Spindle Taper
7/24 Taper No.40 | 7/24 Taper No.50
Spindle Speed
10,000 (15,000) rpm | 6,000 (opt. 8,000) rpm
Spindle Motor
18.5/15/11 kW | 18.5/15 kW
Table Length
1,600 mm
Table Width
762 mm
Max. Table Load
1,869 kg
Tool Capacity
24 (opt. 30/48) pcs
Max. Tool Weight
7 kg | 15 kg
Machine Width
4,000 mm
Machine Depth
3,600 mm
Machine Height
3,520 mm
Machine Weight
13,000 kg | 13,500 kg
