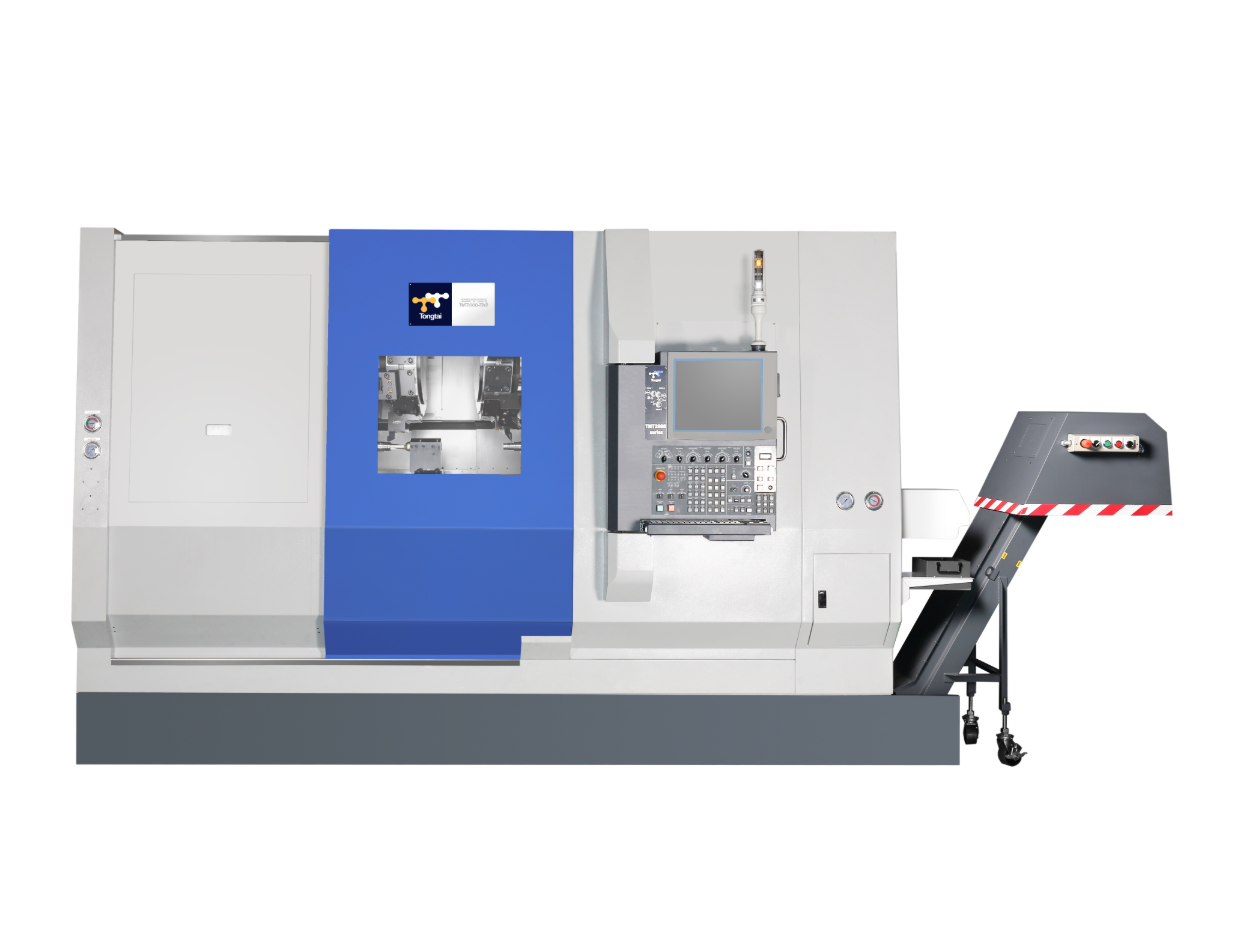

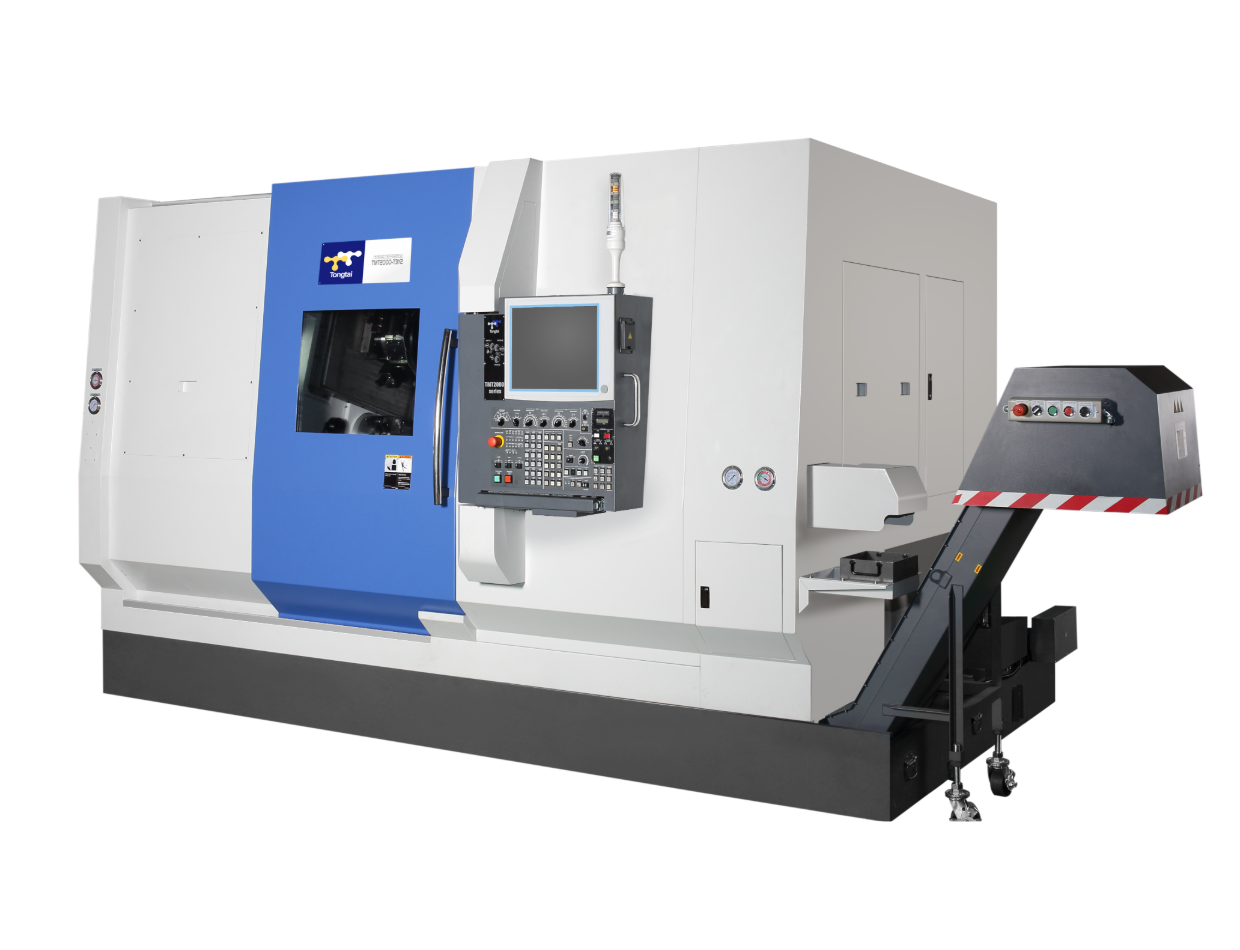

TMT2000-T3Y2
Product Overview

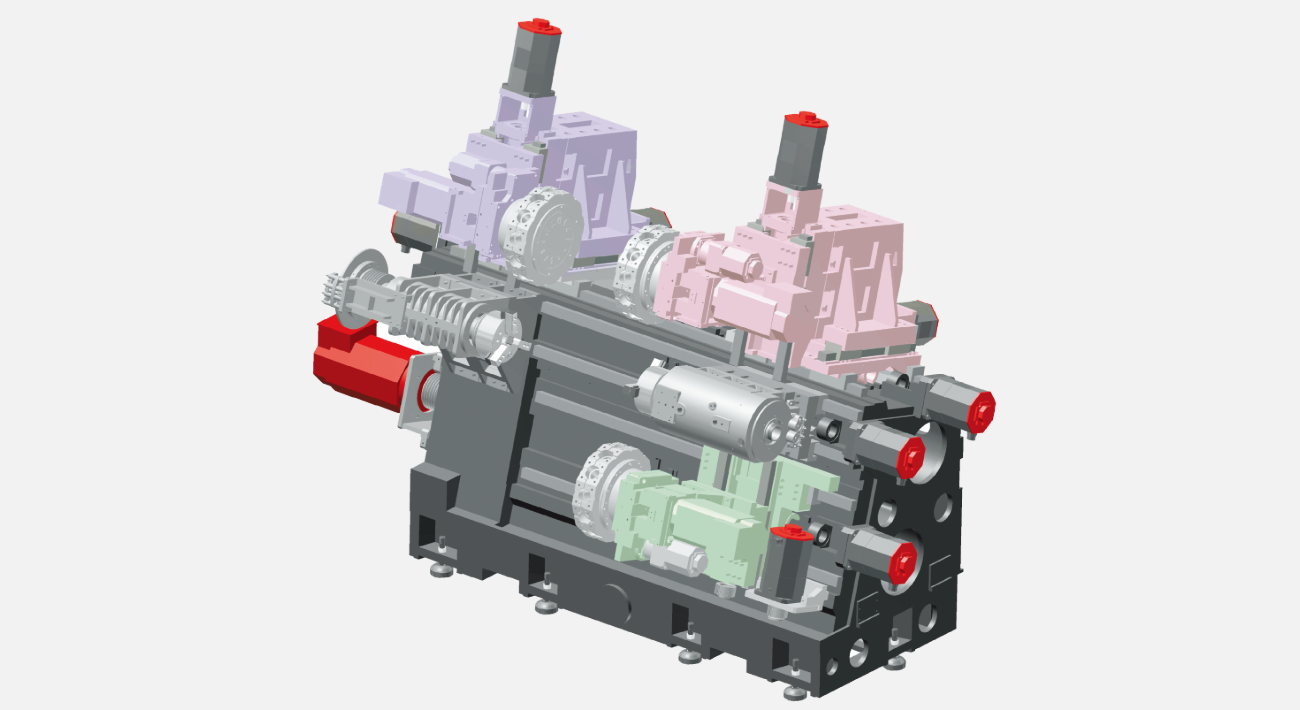

TMT2000-T3Y2 is a high-performance turning center designed for complex machining in the medical, automotive, and aerospace industries. Featuring a symmetrical slide design, it enables complex turning and milling in a single setup, eliminating secondary machining errors. Its high-rigidity structure ensures precision and durability, while the modular design offers excellent potential for automated, unmanned production to maximize investment returns.
Product Introduction

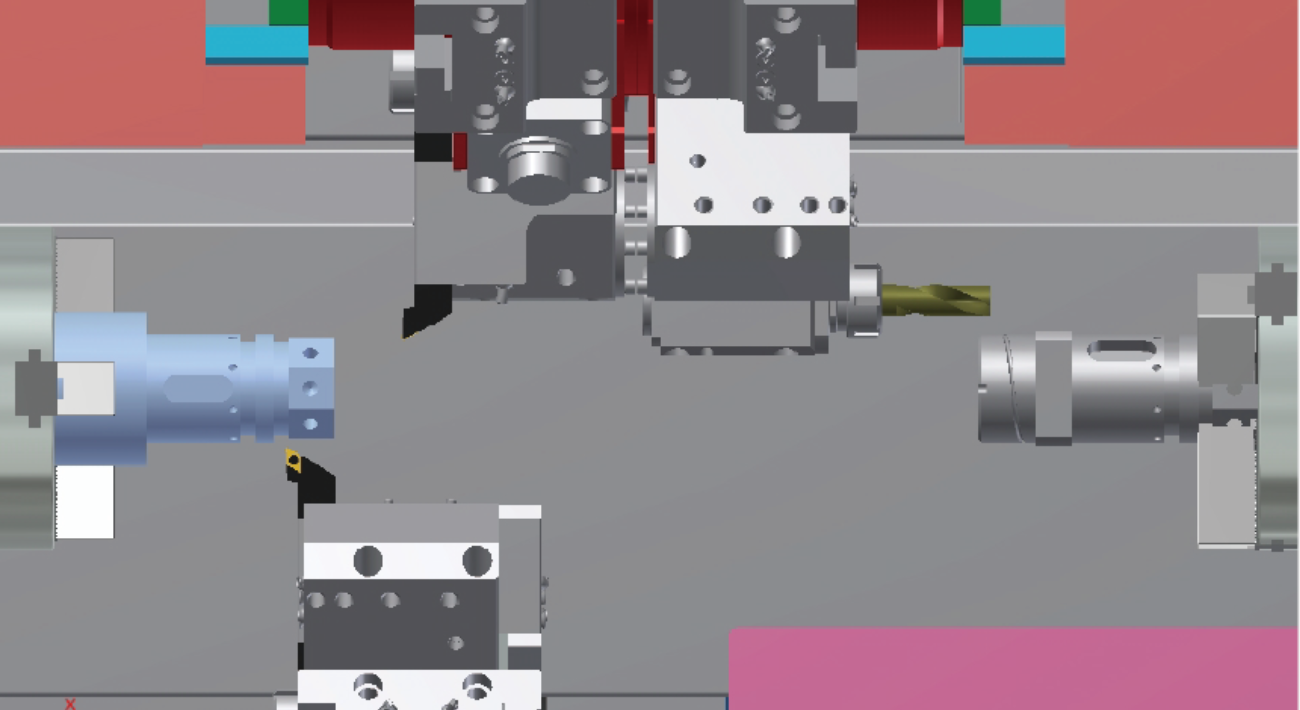

Triple Turret & Twin Y-Axis
Features a three-turret with twin Y-axis design where the lower turret provides support for long shaft workpieces, minimizing deflection and vibration to enhance stability and precision.

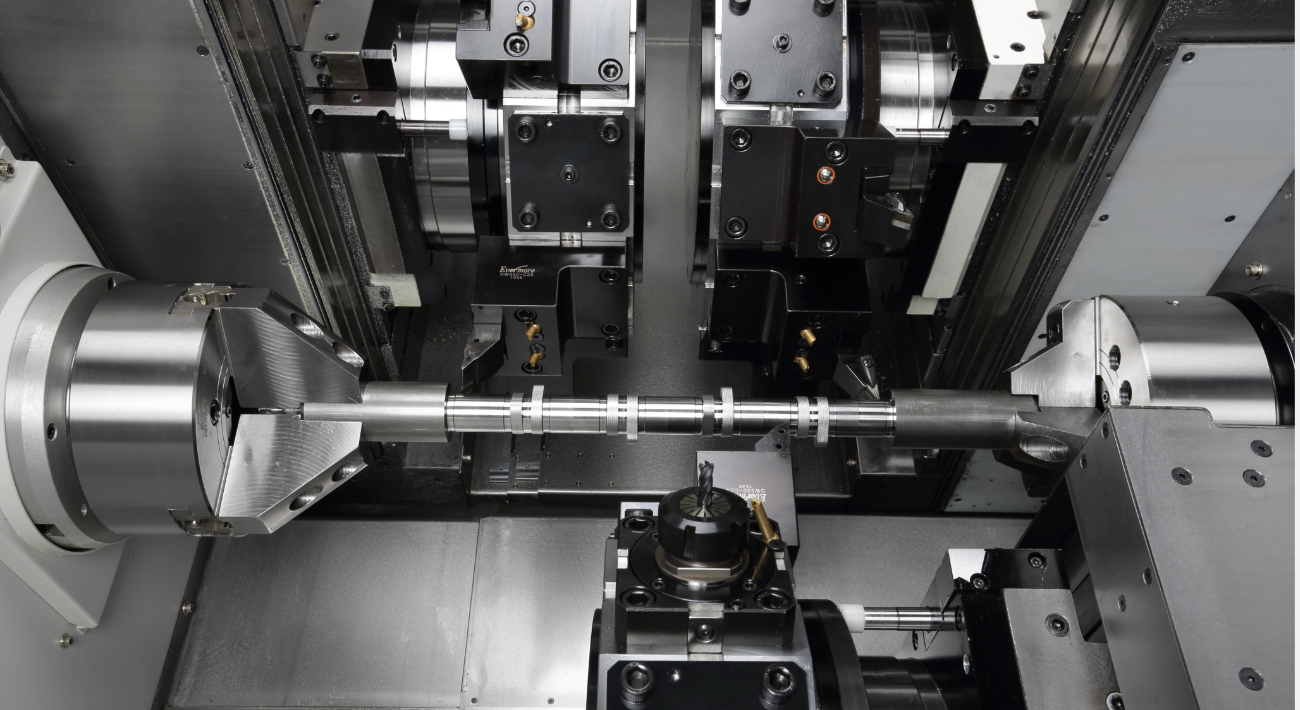

Orthogonal Y-axis Design
Equipped with a true linear Y-axis and orthogonal X/Y/Z axes to eliminate virtual axis errors, ensuring superior positioning accuracy during complex milling operations.
Intelligent Safety
The optional 3D anti-collision system monitors interferences in real-time, automatically stopping the machine before impact to ensure operator safety and reduce setup time.
" Access the e-catalog for complete technical data and configuration options "
Product Specifications
Item
Value
Max. Swing Diameter
Ø720 mm
Max. Turning Diameter
Ø320 mm
Max. Turning Length
600 mm
X-Axis Travel
230/205/230 mm
Y-Axis Travel
±51/-/±51 mm
Z-Axis Travel
440/600/440 mm
B-Axis Travel
680 mm
X-Axis Rapid Traverse
30 m/min
Y-Axis Rapid Traverse
15 m/min
Z-Axis Rapid Traverse
36 m/min
B-Axis Rapid Traverse
30 m/min
Spindle Nose
A2-6
Spindle Speed
4,500 (opt. 6,000) rpm
Spindle Motor
18.5/15/11 kW
Chuck O.D.
8 inch
Bar Capacity
Ø65 (opt. Ø51) mm
Sub-spindle Nose
A2-6
Sub-spindle Speed
6,000 rpm
Sub-spindle Motor
18.5/11 kW
Sub-spindle Chuck O.D.
8 inch
Tool Capacity
12 (opt. 16) x3 pcs
Machine Width
4,100 mm
Machine Depth
2,600 mm
Machine Height
2,500 mm
Machine Weight
10,630 kg
