Product Overview

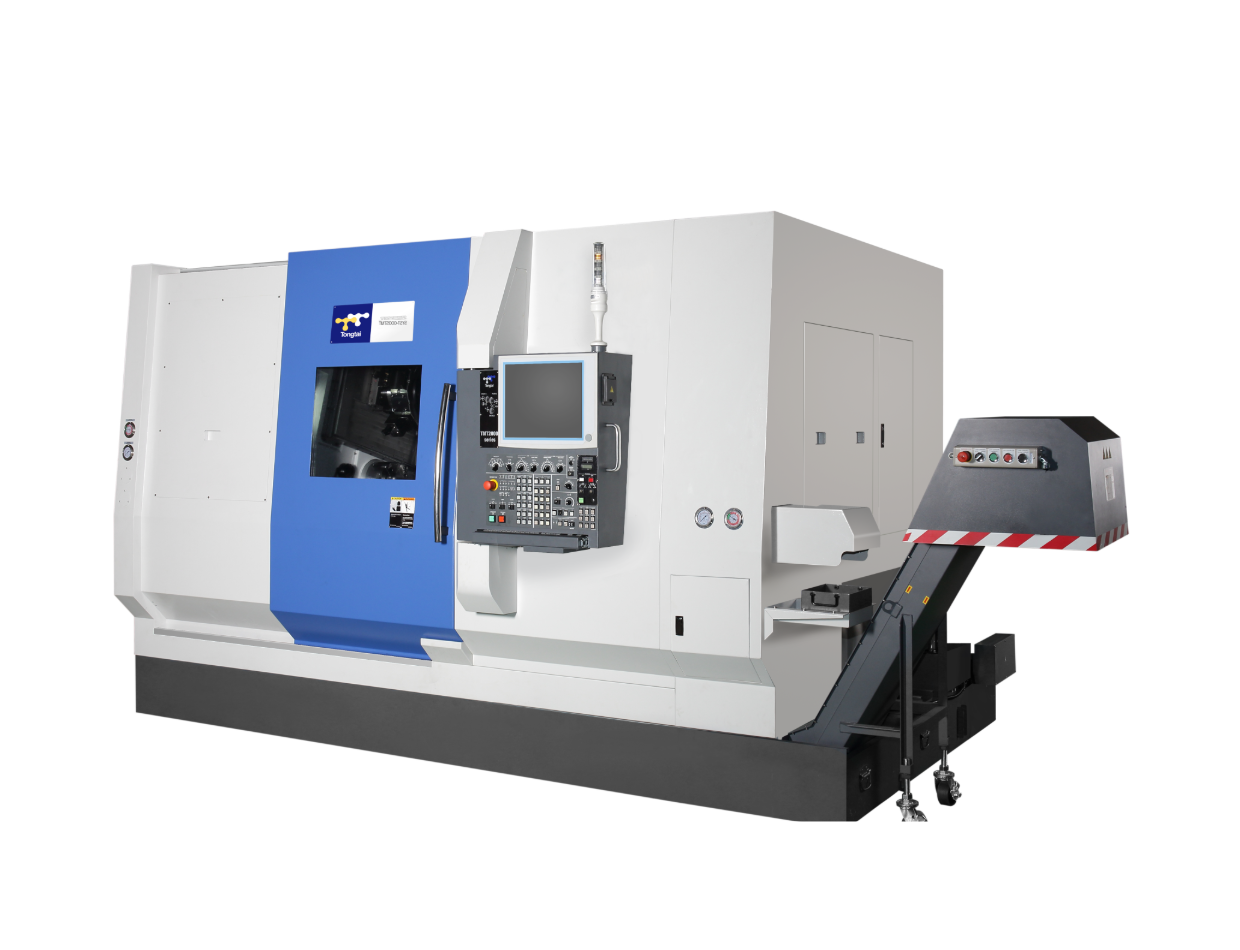

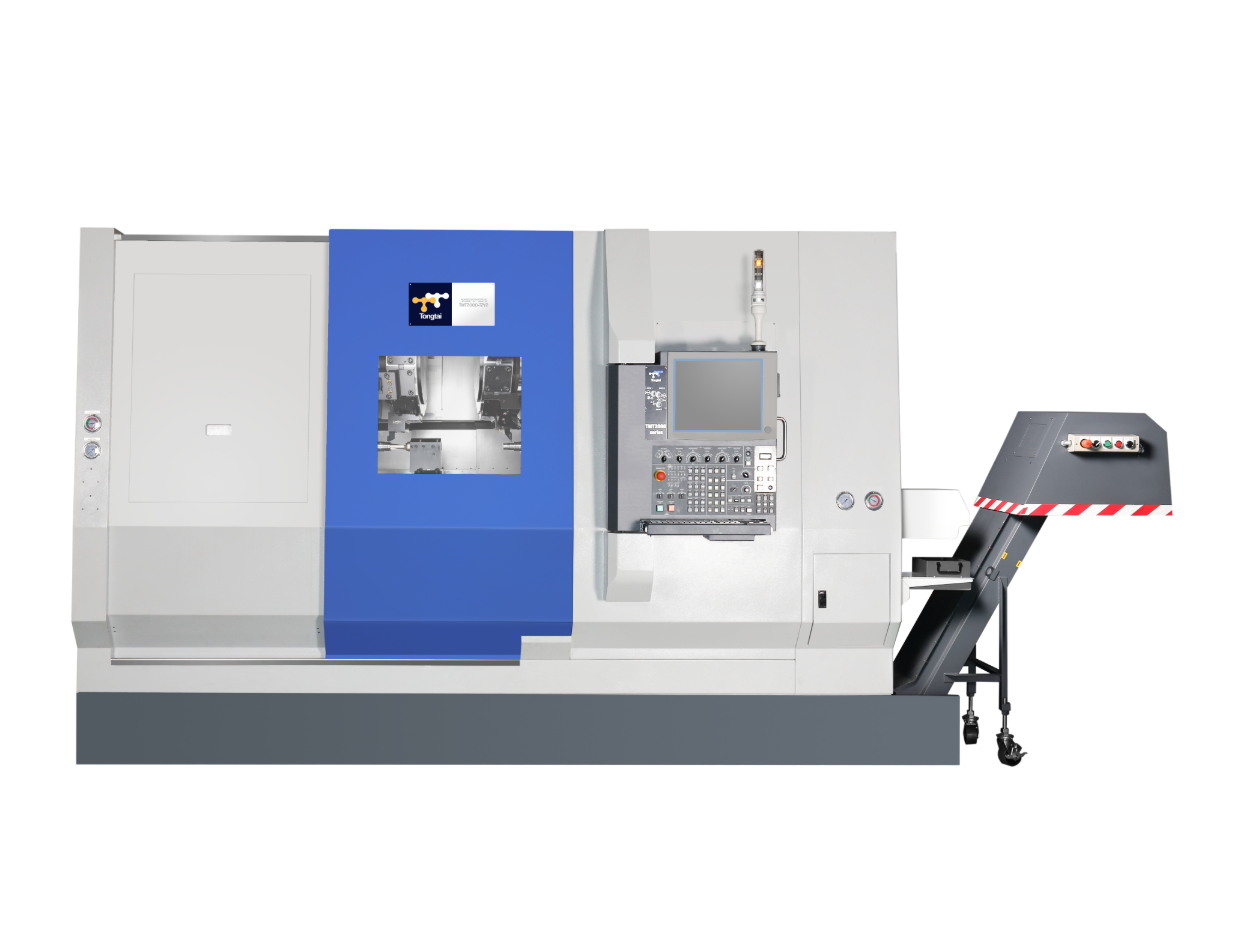

TMT2000-T2Y2 features a symmetrical slide design with twin spindles and twin power turrets plus twin Y-axis, ideal for mass production of precision components. High rigidity combined with Y-axis functionality allows complex composite machining in a single clamping. This symmetrical orthogonal design ensures thermal stability and dynamic accuracy, making it perfect for high-efficiency and high-stability automated production lines.
Product Introduction

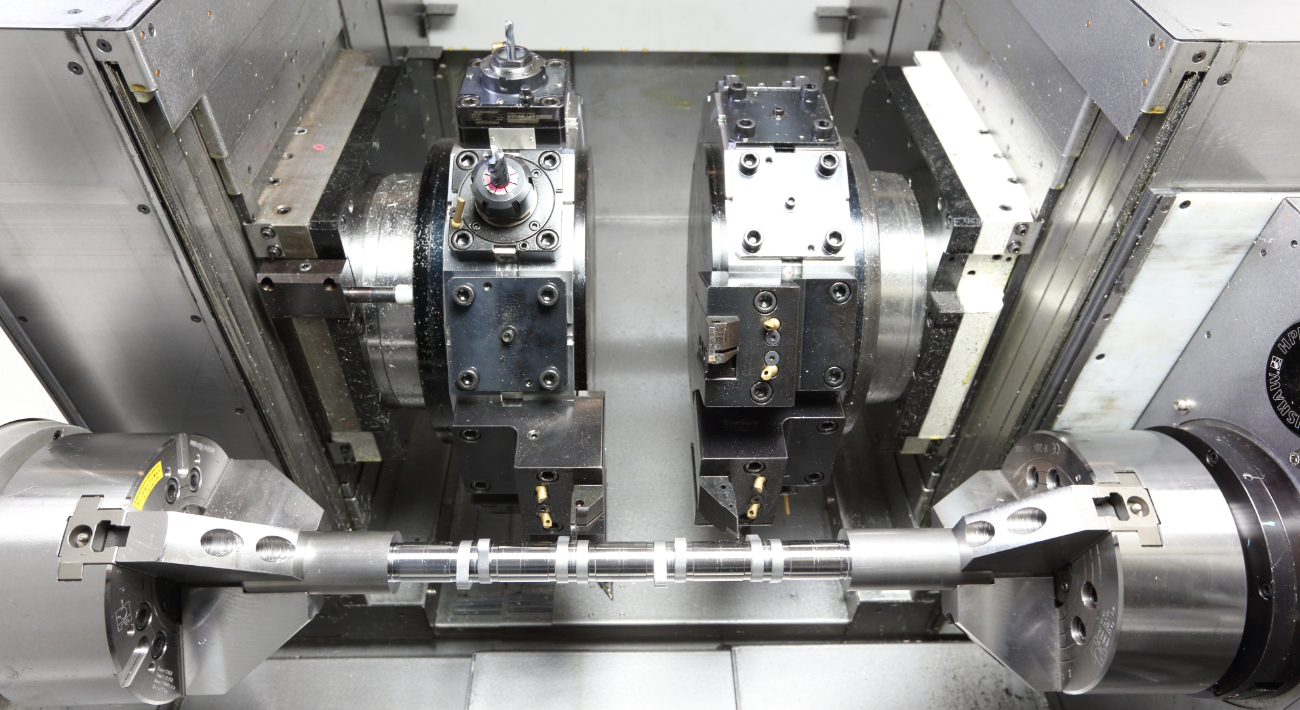

Dual Y-axis Efficiency
Independent Y-axes on dual turrets allow simultaneous machining, reducing cycle times by up to 50% for maximum output.

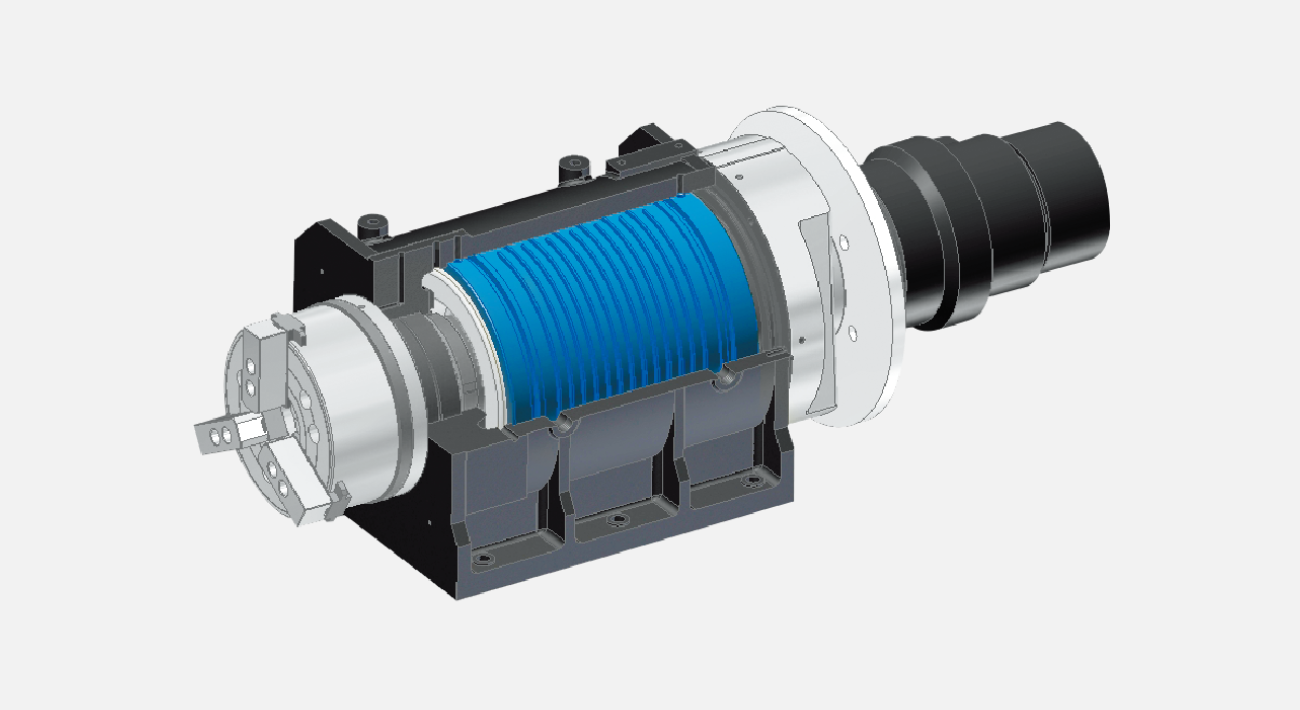

Enhanced Sub Spindle
The built-in sub-spindle with 18.5/11 kW power and water-cooling prevents thermal displacement, ensuring high precision during prolonged operations.

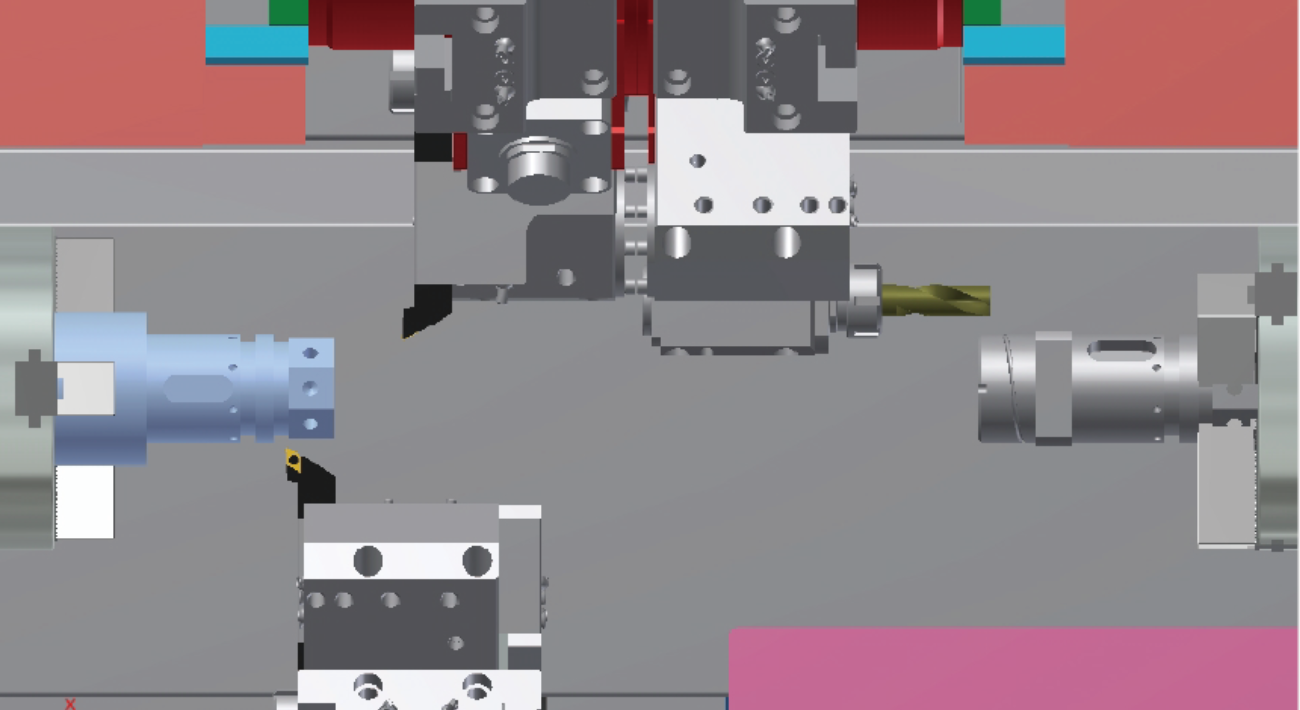

3D Collision Simulation
Optional built-in 3D simulation checks turrets, spindles, and fixtures for potential interference before actual machining to ensure program integrity and machine safety.
" Access the e-catalog for complete technical data and configuration options "
Product Specifications
Item
Value
Max. Swing Diameter
Ø720 mm
Max. Turning Diameter
Ø320 mm
Max. Turning Length
600 mm
X-Axis Travel
230/-/230 mm
Y-Axis Travel
±51/-/±51 mm
Z-Axis Travel
440/-/440 mm
B-Axis Travel
680 mm
X-Axis Rapid Traverse
30 m/min
Y-Axis Rapid Traverse
15 m/min
Z-Axis Rapid Traverse
36 m/min
B-Axis Rapid Traverse
30 m/min
Spindle Nose
A2-6
Spindle Speed
4,500 (opt. 6,000) rpm
Spindle Motor
18.5/15/11 kW
Chuck O.D.
8 inch
Bar Capacity
Ø65 (opt. Ø51) mm
Sub-spindle Nose
A2-6
Sub-spindle Speed
6,000 rpm
Sub-spindle Motor
18.5/11 kW
Sub-spindle Chuck O.D.
8 inch
Tool Capacity
12 (opt. 16) x2 pcs
Machine Width
4,100 mm
Machine Depth
2,600 mm
Machine Height
2,500 mm
Machine Weight
10,000 kg
