Product Overview
TMT2000-T2Y1 offers a practical twin-spindle, twin-turret configuration with Y-axis functionality on one turret, suitable for SMEs producing high-precision turned parts. The symmetrical slide distributes forces optimally while integrating turning and milling to finish parts in one setup. Its compact, high-rigidity structure meets the rigorous demands of long-term industrial automation.
Product Introduction
Symmetrical Orthogonal Structure
True linear Y-axis with 90-degree orthogonal X/Y/Z design provides superior straightness and positioning compared to virtual axes.
Precision Cs-Axis Positioning
Main and sub spindles feature 0.001° indexing with optical scale feedback, meeting the demands for complex multi-angle precision machining.

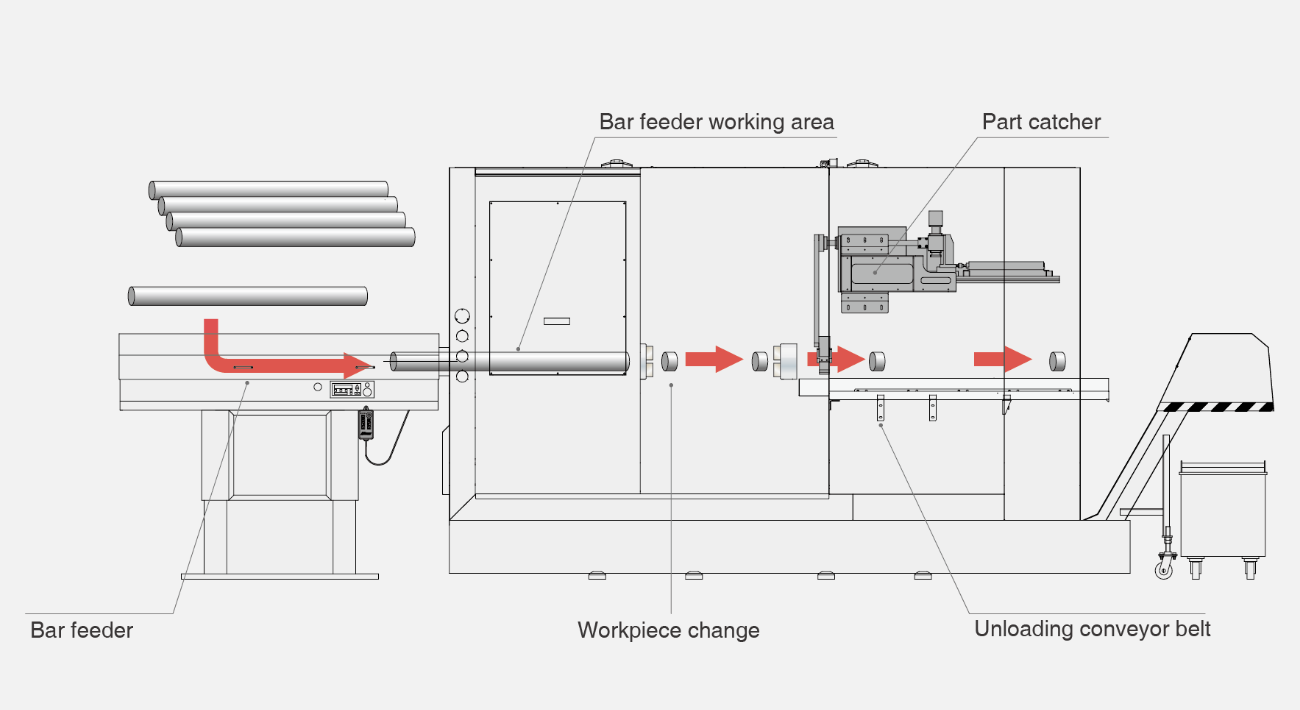

Automation Ready
Compatible with bar feeders or gantry robots for long-term unmanned operation, creating a highly flexible manufacturing system and better ROI.
" Access the e-catalog for complete technical data and configuration options "
Product Specifications
Item
Value
Max. Swing Diameter
Ø720 mm
Max. Turning Diameter
Ø320 mm
Max. Turning Length
600 mm
X-Axis Travel
230/205/- mm
Y-Axis Travel
±51/-/- mm
Z-Axis Travel
600/600/- mm
B-Axis Travel
680 mm
X-Axis Rapid Traverse
30 m/min
Y-Axis Rapid Traverse
15 m/min
Z-Axis Rapid Traverse
36 m/min
B-Axis Rapid Traverse
30 m/min
Spindle Nose
A2-6
Spindle Speed
4,500 (opt. 6,000) rpm
Spindle Motor
18.5/15/11 kW
Chuck O.D.
8 inch
Bar Capacity
Ø65 (opt. Ø51) mm
Sub-spindle Nose
A2-6
Sub-spindle Speed
6,000 rpm
Sub-spindle Motor
18.5/11 kW
Sub-spindle Chuck O.D.
8 inch
Tool Capacity
12 (opt. 16) x2 pcs
Machine Width
4,100 mm
Machine Depth
2,600 mm
Machine Height
2,500 mm
Machine Weight
9,500 kg
