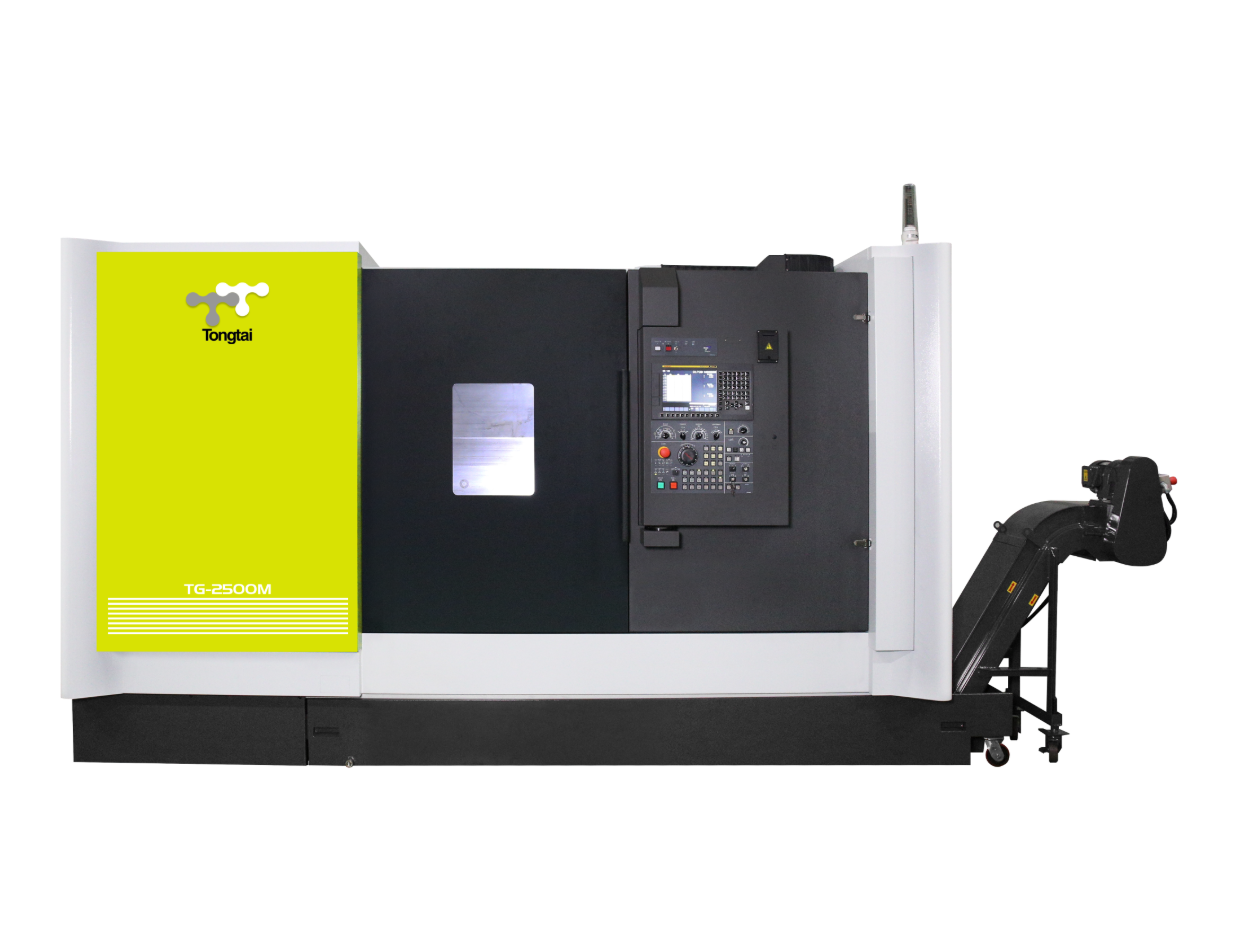

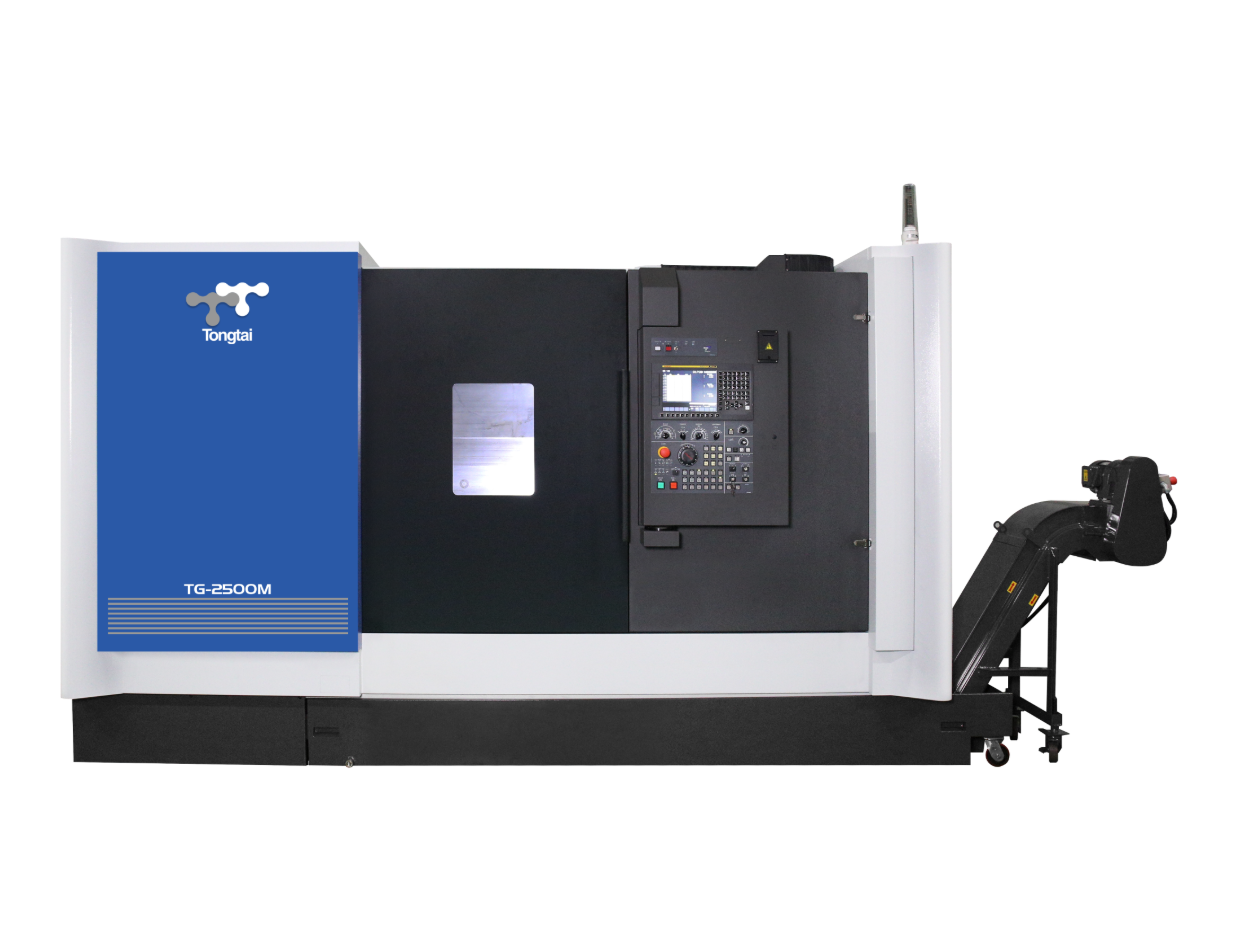

TG-2500M
Product Overview
TG-2500M combines powerful turning with a live turret, suitable for industries requiring multi-angle precision machining. Featuring a 45-degree one-piece slanted bed for high rigidity and easy chip removal, it completes multiple processes in a single setup, enhancing efficiency and reducing handling errors for long workpieces.
Product Introduction

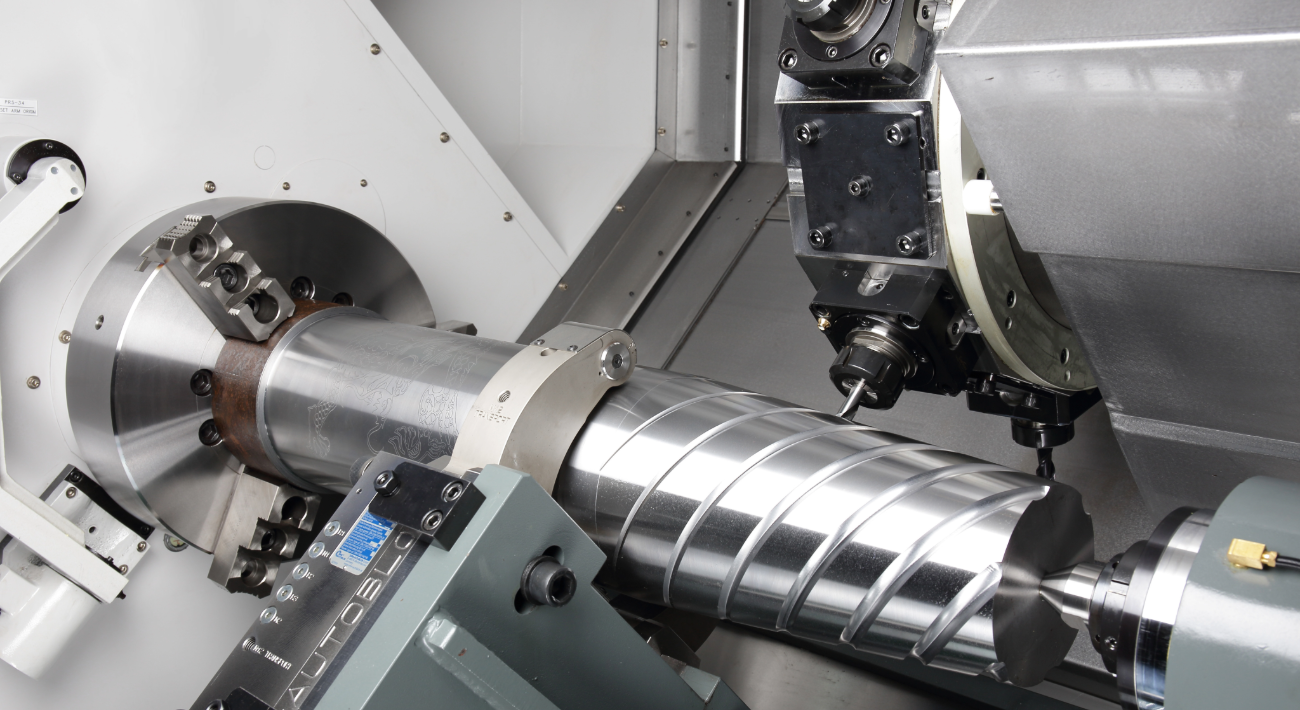

Live Turret & Multi-tasking
Features a 12-station BMT-65 live turret with 1.7s tool change time, 5.5 kW motor, and 4,500 rpm speed, significantly improving complex part production efficiency.

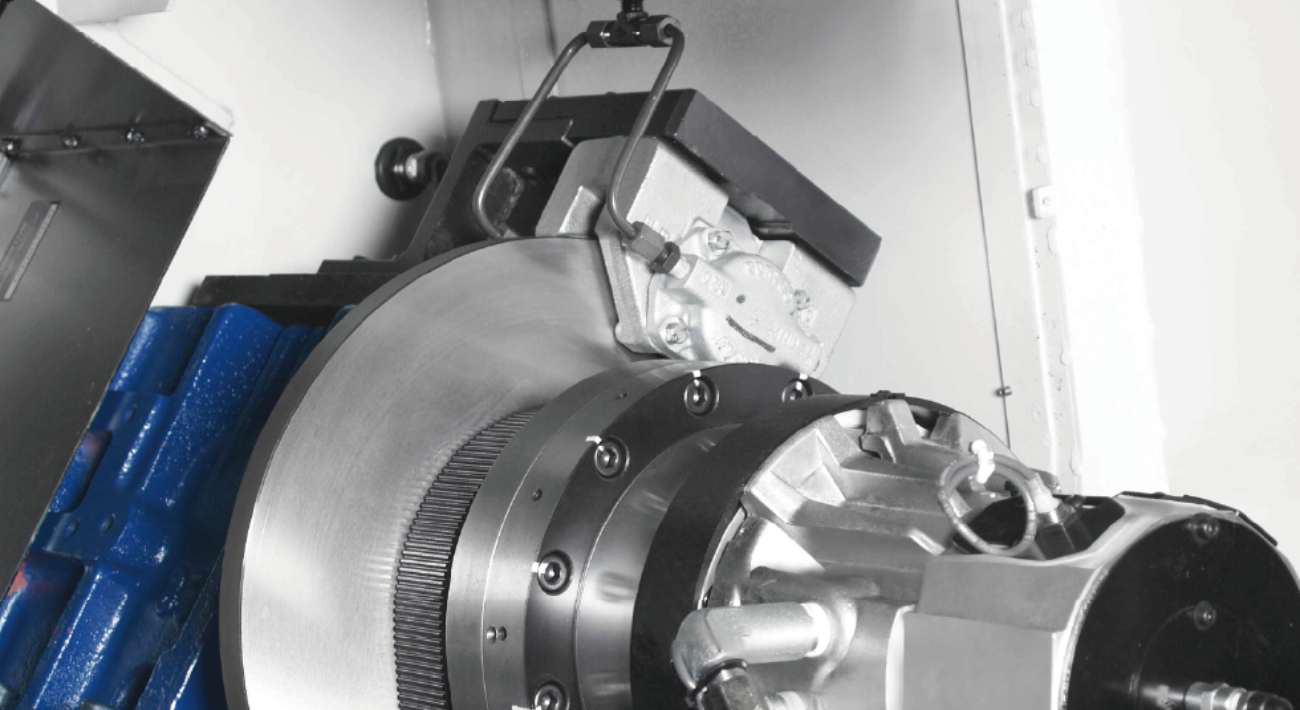

High-Precision C-Axis Positioning
Utilizes a spindle ring scale and multi-point positioning with a minimum resolution of 0.001° to meet high-precision angular and complex profile requirements.
Flexible Stroke & Cutting Performance

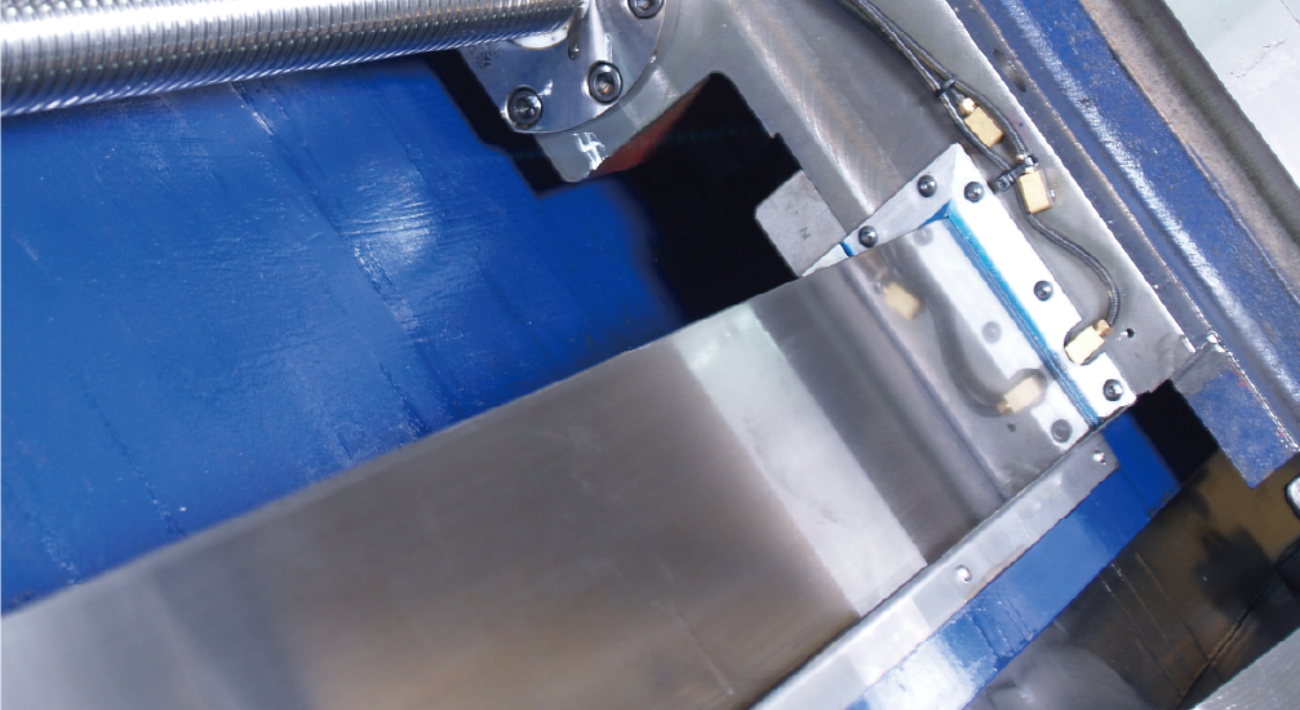

X and Z axis adopt the box-way design. Offers Z-axis strokes up to 2,000 mm and a 25 kW spindle motor. Compatible with hydraulic steady rests and heavy-duty tailstocks to ensure stability.
" Access the e-catalog for complete technical data and configuration options "
Product Specifications
Item
Value
Max. Swing Diameter
Ø620 mm
Max. Turning Diameter
Ø460 mm
Max. Cutting Length
1,075 mm
X-Axis Travel
275 mm
Z-Axis Travel
1,100 mm
B-Axis Travel
-
X-Axis Rapid Traverse
24 m/min
Z-Axis Rapid Traverse
24 m/min
B-Axis Rapid Traverse
-
Spindle Nose
A2-8
Spindle Speed
3500 (opt. 2,500) rpm
Spindle Motor
25/18.5/15 kW
Chuck O.D.
10 (opt. 12) inch
Tool Capacity
12 pcs
Machine Width
4,565 mm
Machine Depth
1,835 mm
Machine Height
2,145 mm
Machine Weight
7,000 kg
