CNC Machining
Horizontal CNC Lathe
TCS-2500II
Product Overview
The TCS-2500II is an excellent choice for manufacturers seeking stable production and strong cost performance. Designed with FEM (Finite Element Method) structural analysis, it delivers excellent dynamic rigidity and machining stability, ensuring consistent quality during long-term operation. Equipped with a servo-driven turret, the machine provides rapid indexing response and effectively reduces non-cutting time. Combined with high-efficiency turning performance and intuitive operation, it serves as a reliable solution for maximizing machine utilization while optimizing return on investment.
Product Introduction
High Dynamic Rigidity Design
The machine is engineered using finite element method (FEM) analysis, including rigorous static, modal, and structural optimization of cast components. This data-driven design approach ensures excellent dynamic rigidity and operational stability even during high-speed machining, providing a solid foundation for precision cutting performance.

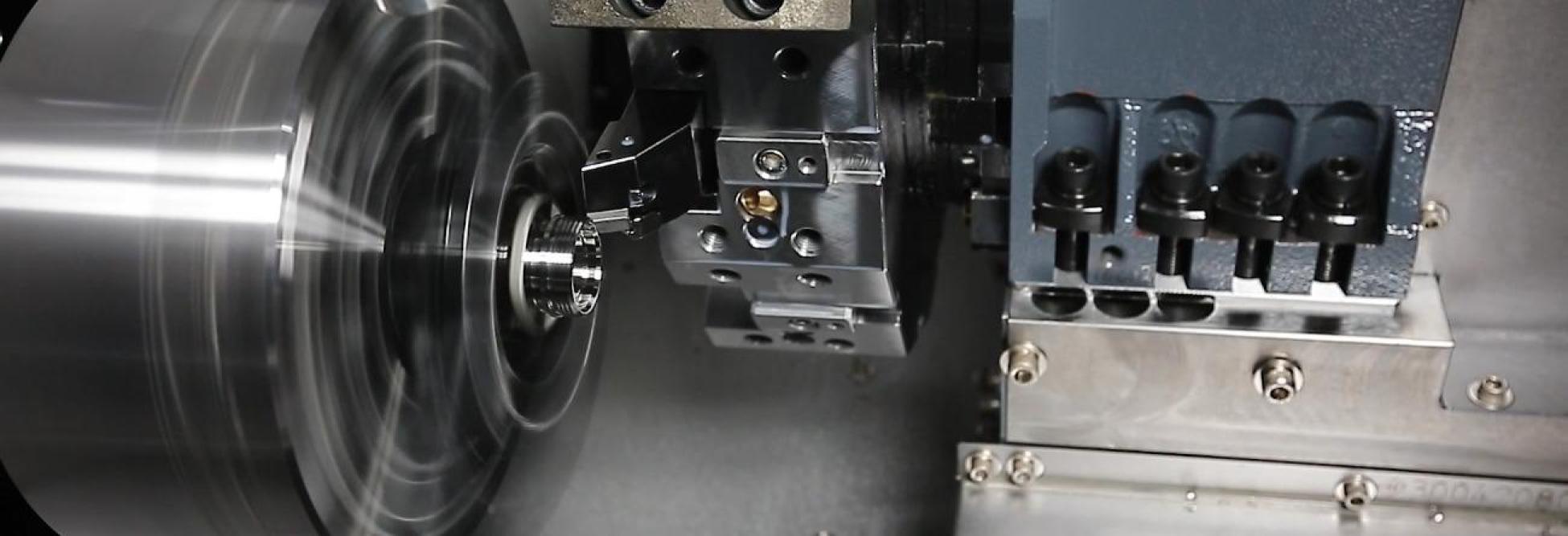

High-Speed Servo-Driven Turret
The machine is equipped with a high-performance servo-driven turret, available in 8- or 12-station configurations, delivering ultra-fast indexing performance. Adjacent tool indexing takes only 0.2 seconds, while full-station indexing requires just 0.6 seconds. By significantly reducing non-cutting time, the system enhances overall machine utilization and production cycle efficiency, making it a key driver for stable, high-output production.
Flexible Automation Modules
The machine offers excellent scalability and flexibility and can be integrated with a variety of automation modules, including bar feeders, gantry loaders, articulated robots, and diverse material handling systems. Through highly integrated automation solutions, it significantly reduces loading and unloading time, transforming standalone machines into high-efficiency automated production lines.
" Access the e-catalog for complete technical data and configuration options "
Introduction Video
Product Specifications
Item
Value
Max. Swing Diameter
Ø520 mm
Max. Turning Diameter
Ø300 (opt. Ø320) mm
Max. Cutting Length
322 mm
X-Axis Travel
170 mm
Z-Axis Travel
400 mm
B-Axis Travel
-
X-Axis Rapid Traverse
30 mm
Z-Axis Rapid Traverse
30 mm
B-Axis Rapid Traverse
-
Spindle Nose
A2-8
Spindle Speed
2,500 (opt. 3,500) rpm
Spindle Motor
15/11 kW
Chuck O.D.
10 inch
Tool Capacity
12 (opt. 8) pcs
Machine Width
2,390 mm
Machine Depth
1,950 mm
Machine Height
2,190 mm
Machine Weight
3,400 (opt. 3,500) kg
