QVM-610AII
Product Overview

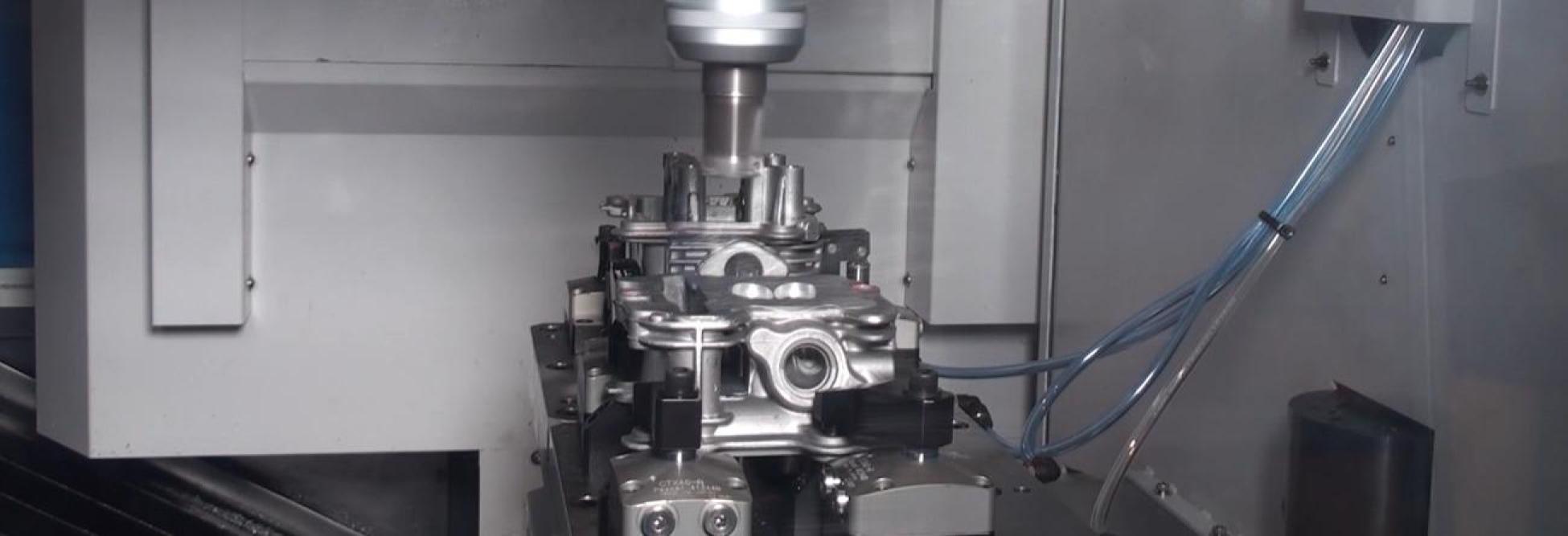

The QVM-610AII Vertical Machining Center is engineered for high-efficiency mass production. Equipped with an APC (Automatic Pallet Changer), it minimizes loading and unloading time while improving machine utilization. The machine features a moving-column structure and a three-point support design, ensuring stable machining performance and superior surface finish quality. Enhanced three-axis rigidity and efficient tool-changing performance further boost productivity, making the QVM-610AII an ideal solution for batch production of small- to medium-sized components in automotive, motorcycle, and electronics applications.
Product Introduction
High-Rigidity Structure & Extended Travel
The machine structure is optimized through finite element analysis (FEA) to achieve high rigidity and excellent dynamic performance. With a Z-axis travel of 510 mm, the machine is well suited for machining tall workpieces and supporting fourth-axis applications, while maintaining outstanding structural stability.
Three-Point Clamping Worktable
The machine is equipped with Tongtai’s patented three-point clamping support mechanism (M448348). The single-side, three-point support and clamping design effectively enhances the worktable’s lateral and axial stability. This ensures superior surface quality and improved surface finish performance during machining.
High-Speed & Energy-Saving APC
The Automatic Pallet Changer (APC) system utilizes a roller cam mechanism driven by an electric motor, offering low starting torque characteristics that effectively reduce pallet exchange time. Compared with conventional hydraulically driven systems, it provides both energy efficiency and lower maintenance requirements.
- Max. Load：400 kg × 2
- Pallet Exchange Time：4 sec（200 kg load）
" Access the e-catalog for complete technical data and configuration options "
Introduction Video
Product Specifications
Item
Value
X-Axis Travel
610 mm
Y-Axis Travel
410 mm
Z-Axis Travel
510 mm
X-Axis Rapid Traverse
36 m/min
Y-Axis Rapid Traverse
36 m/min
Z-Axis Rapid Traverse
30 m/min
Spindle Taper
7/24 Taper No.40
Spindle Speed
8,000 (opt. 10,000) rpm
Spindle Motor
7.5/5.5 (opt. 9/7.5) kW
Table Length
700 mm
Table Width
410 mm
Max. Table Load
400x2 kg
Tool Capacity
24 (opt. 30) pcs
Max. Tool Weight
7 kg
Machine Width
2,440 mm
Machine Depth
4,610 mm
Machine Height
2,880 mm
Machine Weight
7,500 kg
