M1500
Product Overview
The M1500 Horizontal Machining Center is engineered based on French PCI expertise, designed for mass production of medium- to large-sized structural components and automotive parts. Featuring a high-speed moving-column architecture combined with linear motor drives and an HSK built-in spindle, it delivers both high torque and high-speed machining performance. The large-diameter A/B-axis rotary table supports multi-face machining applications, while a dual-level tool magazine and process monitoring system enhance production stability and machining efficiency. This makes it an ideal solution for intelligent manufacturing and flexible production line integration.
Product Introduction
Moving Column & Multi-Axis

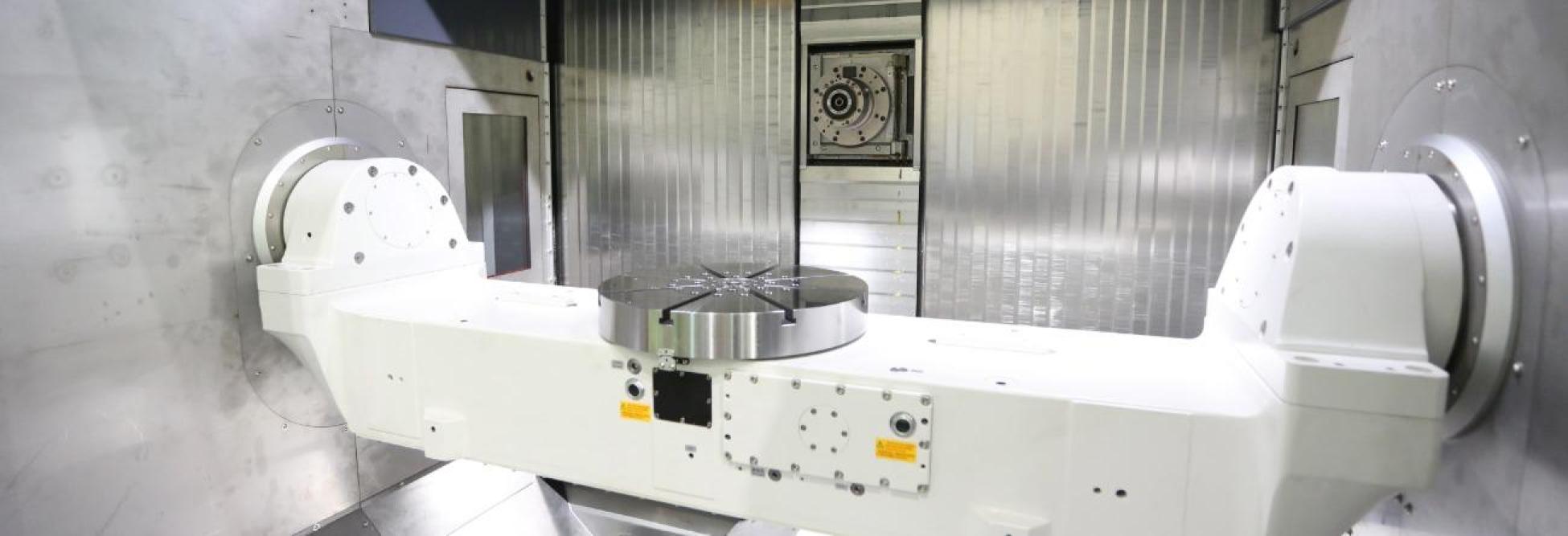

The M1500 integrates a high-speed moving-column structure with linear motor drive technology, delivering exceptional dynamic response to significantly reduce non-cutting time. Its spacious machining envelope and flexible multi-axis configuration enable one-stop machining of complex processes for medium- to large-sized components, providing maximum production flexibility and high machine utilization for high-demand manufacturing environments.
Dual-Level Disc-Type Tool Magazine
The tool magazine features a zero tool-change travel design, reducing chip-to-chip tool change time to just 3.8 seconds.
This ensures fast, seamless transitions between complex machining processes and high-volume production, maximizing machine utilization and overall productivity.
High-Performance Built-In Spindle
Reliability, accuracy, and durability are the defining characteristics of the PCI built-in spindle, ensuring stable high-speed machining performance for precision manufacturing applications.
Chip Removal & Filtration System
The M1500 is equipped with dual chip augers and a high-pressure coolant flushing system, rapidly directing large volumes of chips into dual collection bins to prevent heat buildup that may affect machining accuracy.
Combined with dual conveyors and an efficient filtration system, it maintains a clean machining environment while enabling automatic coolant recycling, ensuring stable long-term unattended operation.
" Access the e-catalog for complete technical data and configuration options "
Introduction Video
Product Specifications
Item
Value
X-Axis Travel
A63：1,600 mm｜A100：1,550 mm
Y-Axis Travel
A63：900 mm｜A100：800mm
Z-Axis Travel
630 mm
X-Axis Rapid Traverse
A63：90 m/min｜A100：70 m/min
Y-Axis Rapid Traverse
A63：80 m/min｜A100：60 m/min
Z-Axis Rapid Traverse
80 m/min
Spindle Taper
A63：HSK-A63｜A100：HSK-A100
Spindle Speed
A63：0-18,000 rpm｜A100：0-12,000 rpm
Spindle Motor
A63：30/50 kW｜A100：42/65 kW
Table Length
Ø500 mm
Table Width
Ø500 mm
Max. Table Load
A63：500 kg｜A100：800 kg
Tool Capacity
A63：29 pcs｜A100：26+26 pcs
Max. Tool Weight
A63：8 kg｜A100：15 kg
Machine Width
4,200 mm
Machine Depth
5,560 mm
Machine Weight
A63：22,000 kg｜A100：25,000 kg
Machine Height
A63：3,550 mm｜A100：3,700 mm
