CNC Machining
Horizontal 5-Axis Machining Center
HTT-500
Product Overview
The HTT-500 Horizontal 5-Axis Machining Center is engineered for high-mix, low-volume production and complex part machining. It is ideal for automotive components, mechanical structures, and multi-face applications.
The machine adopts an orthogonal trunnion-type five-axis configuration equipped with DD direct-drive A/B-axis rotary tables, delivering high-resolution positioning and zero-backlash performance. Combined with a built-in spindle and high-rigidity structure, it enables complex multi-angle machining in a single setup.
An optional APC (Automatic Pallet Changer) system is available to minimize downtime and enhance overall production efficiency.
Product Introduction
FEA Structural Optimization Design
The machine structure is validated through finite element analysis (FEA) for static, dynamic, and modal performance, ensuring excellent vibration resistance.
Combined with an optimized guideway configuration, the design enhances geometric accuracy and structural stability during machining, providing a robust foundation for precision cutting.
High-Power Built-In Spindle
The standard 15,000 rpm high-speed built-in spindle delivers up to 37 kW of power and 249 Nm of torque, providing exceptional heavy-duty cutting and precision machining performance. Equipped with an integrated cooling system and oil-air lubrication, it effectively controls temperature rise and suppresses thermal deformation, ensuring outstanding accuracy and long-term durability even during high-speed operation.
Automatic Pallet Changer (APC)
The APC system enables simultaneous machining and loading/unloading operations, allowing operators to prepare the next workpiece while the machine is running. This significantly reduces idle time and enhances overall productivity.

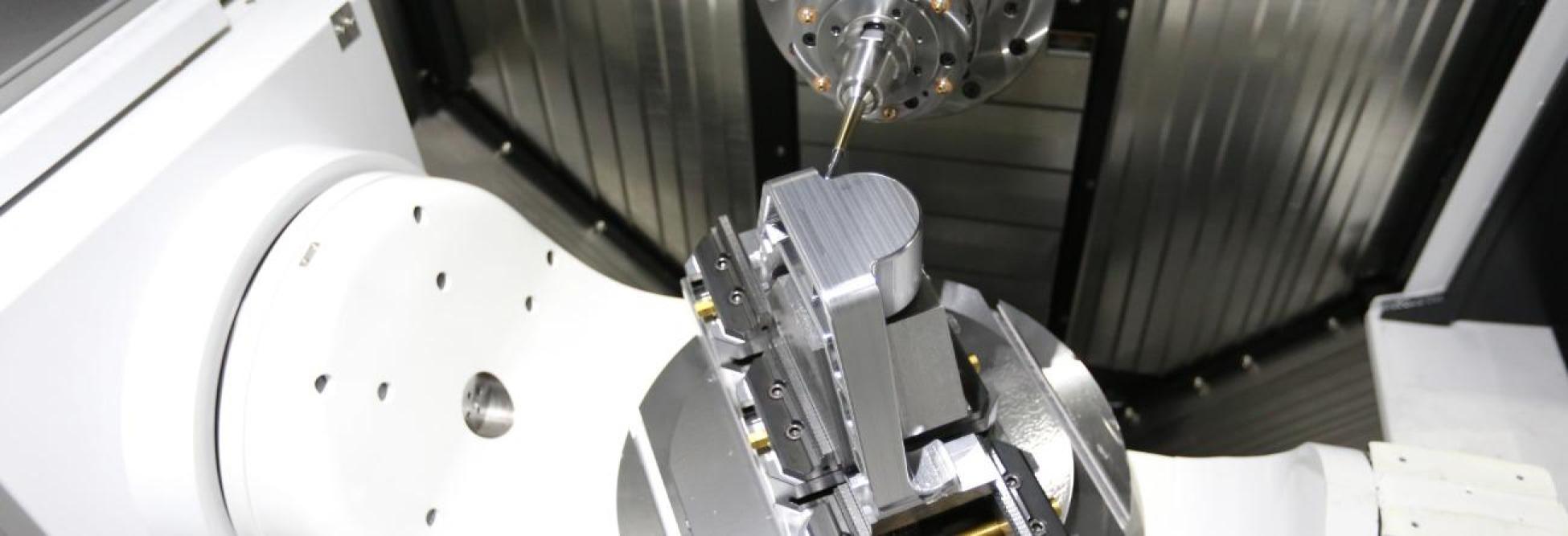

DD Direct-Drive Trunnion Rotary Table
The rotary table supports multi-angle machining of complex parts, enabling process integration and reduced changeover time.
Equipped with a DD direct-drive motor system, it delivers high torque and zero-backlash performance, enhancing machining flexibility while ensuring exceptional positioning accuracy for every operation.
" Access the e-catalog for complete technical data and configuration options "
Introduction Video
Product Specifications
Item
Value
X-Axis Travel
800 mm
Y-Axis Travel
800 mm
Z-Axis Travel
830 mm
A-Axis Travel
-120~+20°
B-Axis Travel
360°
X-Axis Rapid Traverse
60 m/min
Y-Axis Rapid Traverse
60 m/min
Z-Axis Rapid Traverse
60 m/min
A-Axis Rapid Traverse
50 rpm
B-Axis Rapid Traverse
100 rpm
Spindle Taper
-
Spindle Speed
15,000 rpm
Spindle Motor
37/18 kW
Table Length
500 mm
Table Width
500 mm
Max. Table Load
500 kg
Tool Capacity
60 (opt. 90/120) pc
Max. Tool Weight
12 kg
Machine Width
3,557 mm
Machine Depth
6,377 mm
Machine Height
3,177 mm
Machine Weight
15,000 kg
