Horizontal CNC Lathe
HS-22M
Product Overview
HS-22M is an advanced model featuring a live tool turret, combining turning and milling capabilities. Ideal for precision industries requiring multi-process machining, it completes complex parts in a single setup, reducing throughput time and enhancing competitive advantages in diverse part production.
Product Introduction
Multi-tasking Integration
Equipped with a 12-station live turret and max. 6,000 rpm live tool speed for diverse complex milling requirements.
High-Precision Positioning
CS-axis with optical scale feedback provides 0.001-degree indexing resolution for extreme machining precision.
Powerful Output
Live tool motor delivers 5.5/3.7 kW for superior drilling and milling torque, enhancing composite performance.
Automation Synergy

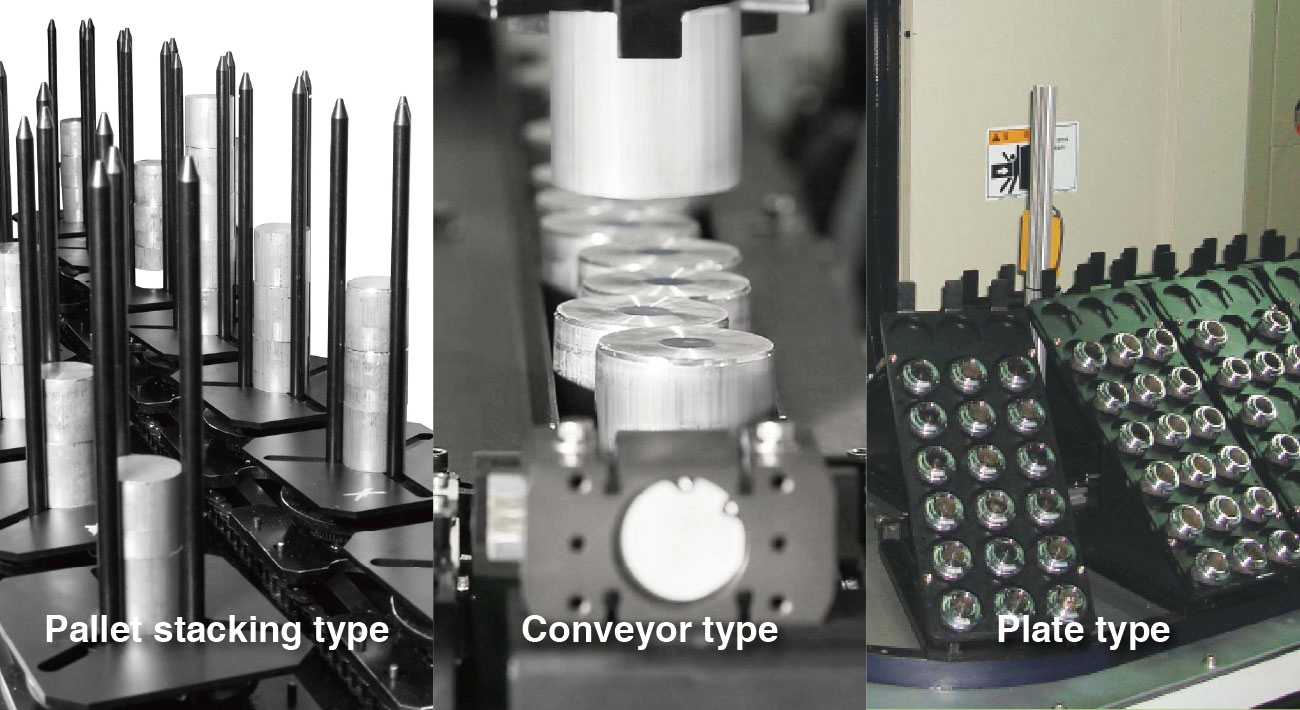

Perfect integration with robotic arms enables 24/7 unmanned composite machining and significantly shortens the production cycle.
" Access the e-catalog for complete technical data and configuration options "
Product Specifications
Item
Value
Max. Swing Diameter
Ø220 mm
Max. Turning Diameter
Ø220 mm
Max. Cutting Length
200 mm
X-Axis Travel
155 mm
Z-Axis Travel
220 mm
B-Axis Travel
-
X-Axis Rapid Traverse
20 m/min
Z-Axis Rapid Traverse
20 m/min
B-Axis Rapid Traverse
-
Spindle Nose
A2-5 (opt. A2-6)
Spindle Speed
6,000 (opt. 4,800/4,500) rpm
Spindle Motor
18.5/15/11 kW
Chuck O.D.
6 (opt. 8) inch
Tool Capacity
12 pcs
Machine Width
1,560 mm
Machine Depth
1,450 mm
Machine Height
1,730 mm
Machine Weight
2,350 kg
