Horizontal CNC Lathe
HS-22
Product Overview

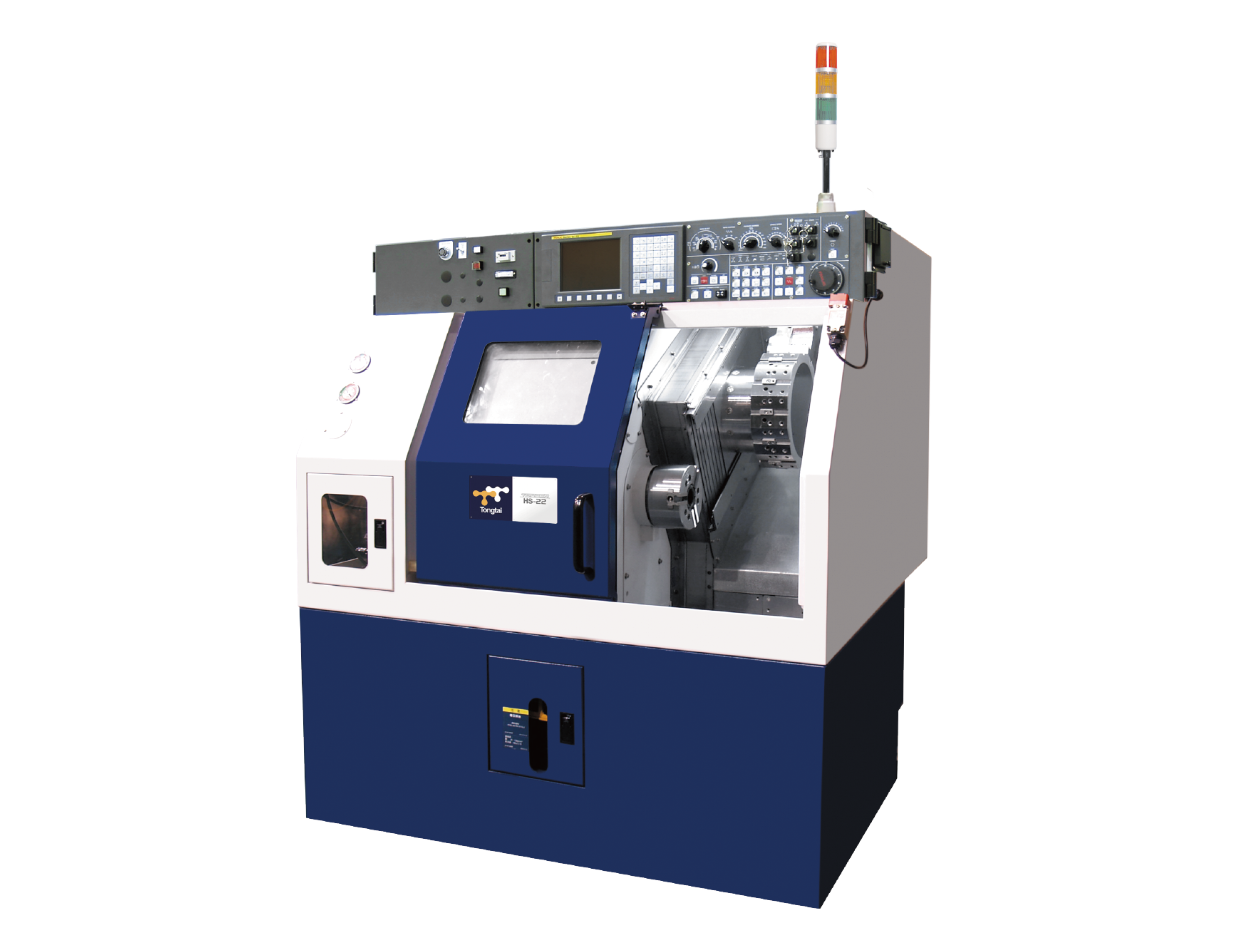

HS-22 horizontal CNC lathe is designed for high-efficiency production lines with a compact footprint. It maximizes factory space utilization while maintaining structural stability. Suitable for automotive parts and electronic components, it is an ideal choice for high-precision and automated production.
Product Introduction
Compact Design
Space-saving structure allows flexible production line layouts and enhances factory output per square meter.
High-Speed Performance

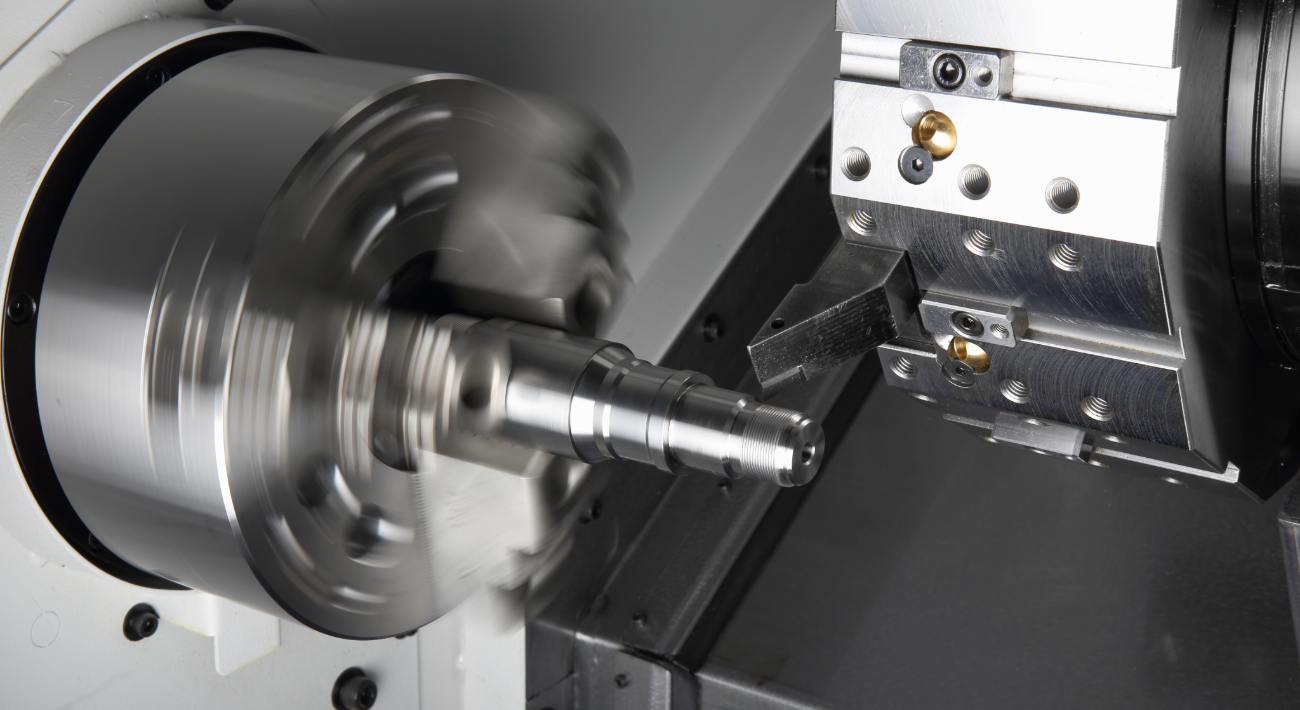

Spindle acceleration from 0 to 5,000 rpm in just 2.87 seconds significantly reduces non-cutting time.
High Rigidity

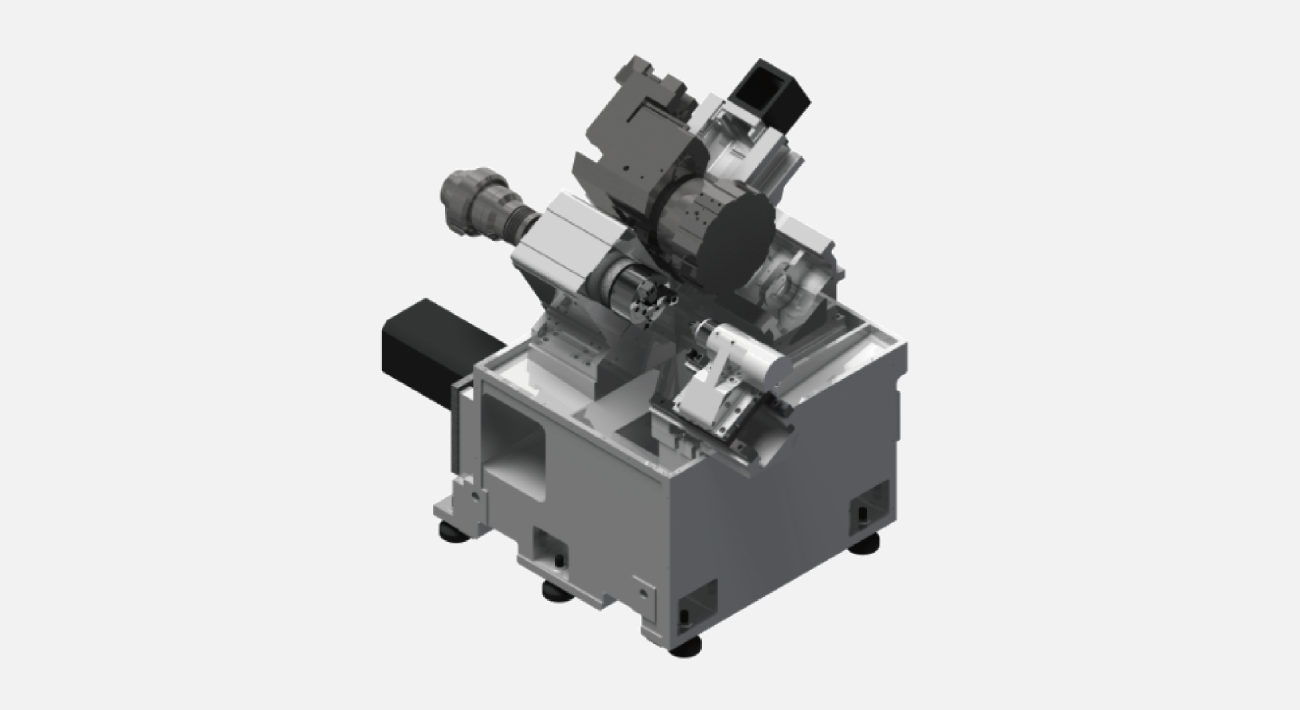

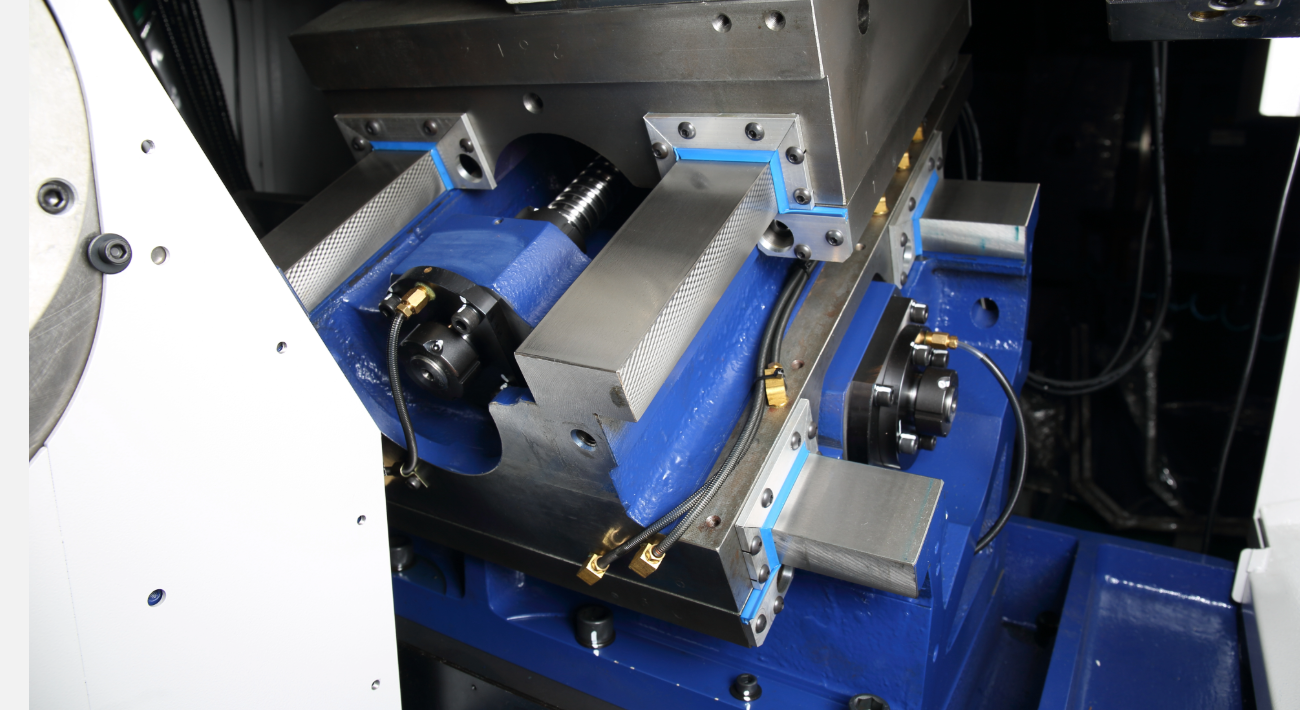

Both X/Z axes feature hardened box ways to meet heavy and interrupted cutting needs while maintaining precision.
Automation Excellence

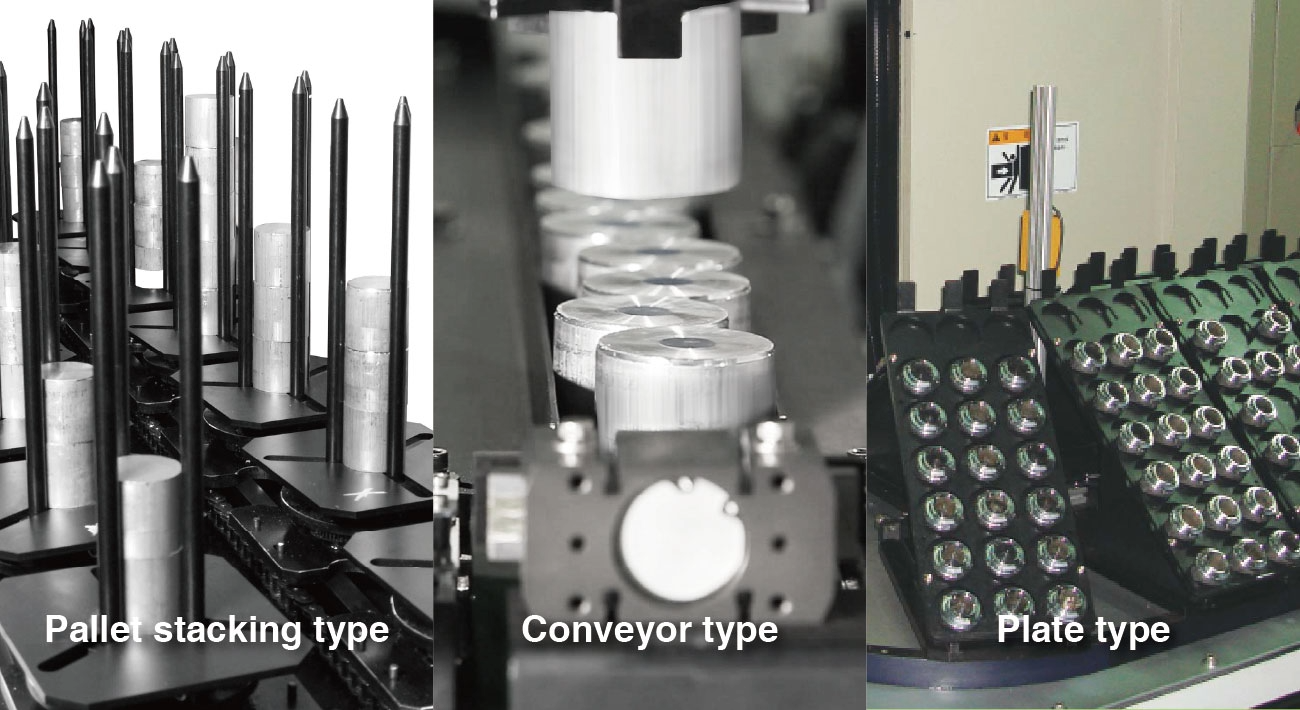

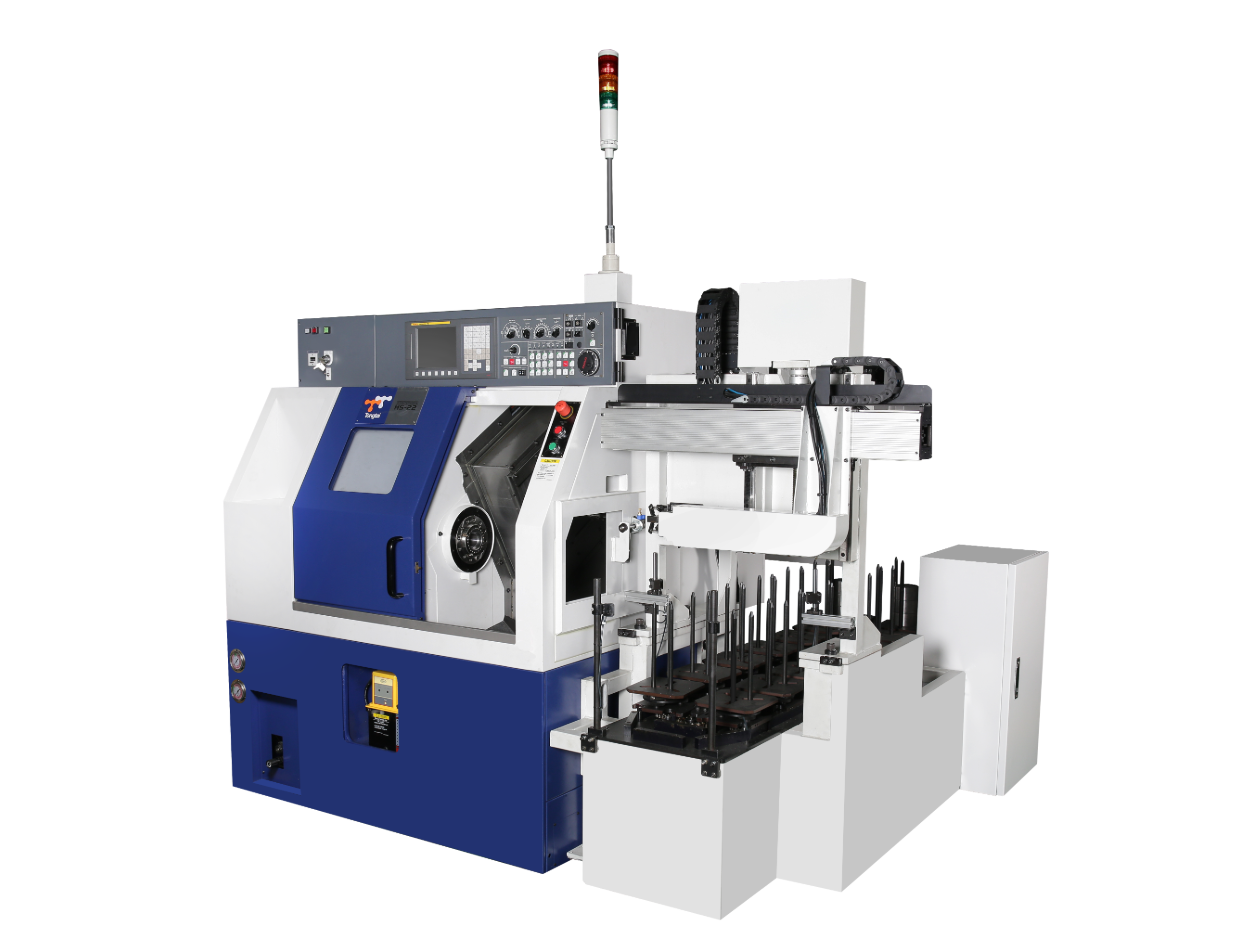

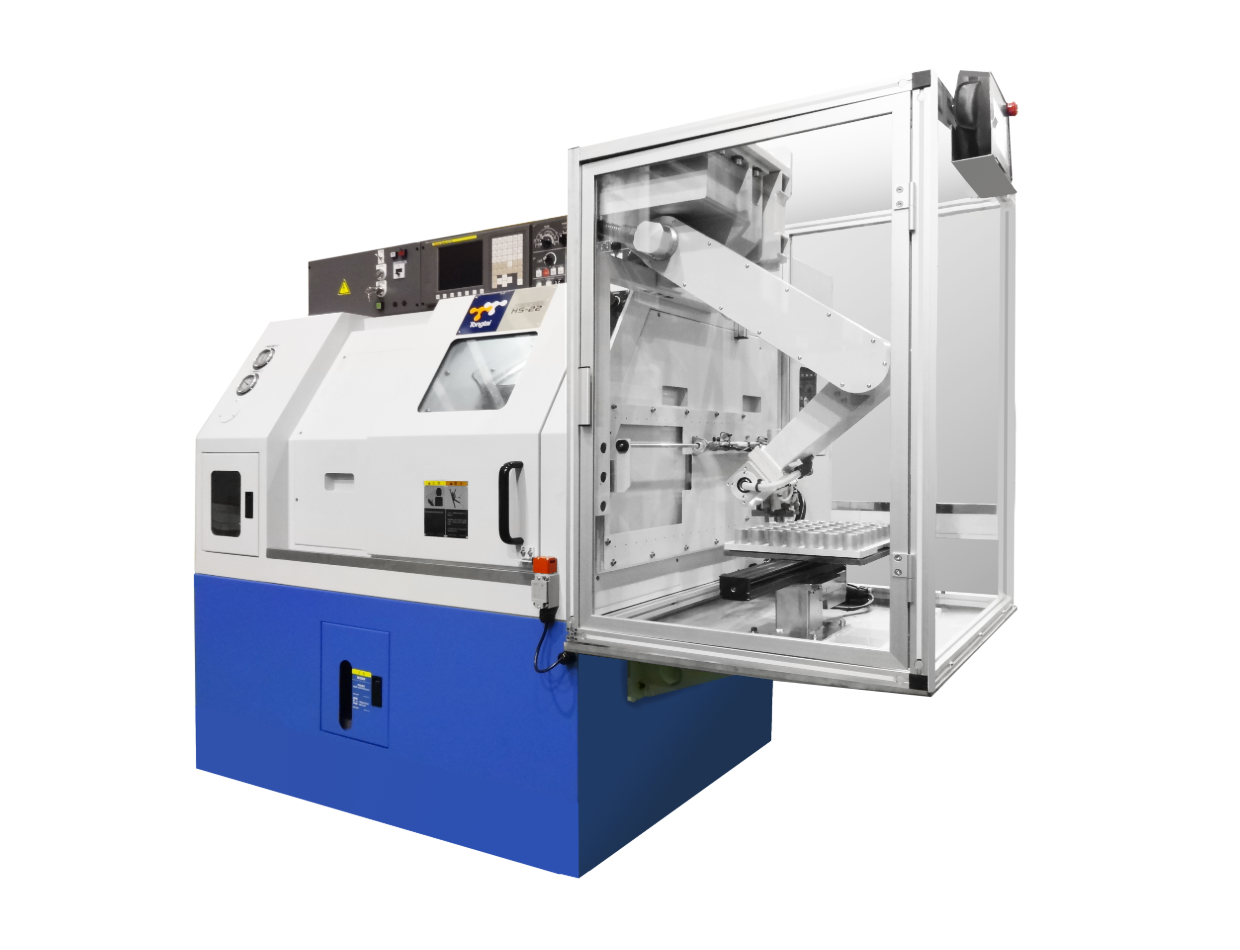

Integrating Tongtai's patented loading system achieves a 4.8-second cycle time, boosting productivity and saving labor.
" Access the e-catalog for complete technical data and configuration options "
Product Specifications
Item
Value
Max. Swing Diameter
Ø220 mm
Max. Turning Diameter
Ø220 mm
Max. Cutting Length
200 mm
X-Axis Travel
155 mm
Z-Axis Travel
220 mm
B-Axis Travel
-
X-Axis Rapid Traverse
20 m/min
Z-Axis Rapid Traverse
20 m/min
B-Axis Rapid Traverse
-
Spindle Nose
A2-5 (opt. A2-6)
Spindle Speed
6,000 (opt. 4,800/4,500) rpm
Spindle Motor
15/11/7.5 kW
Chuck O.D.
6 (opt. 8) inch
Tool Capacity
12 (opt. 8) pcs
Machine Width
1,410 mm
Machine Depth
1,450 mm
Machine Height
1,730 mm
Machine Weight
2,350 kg
