Vertical 5-Axis Machining Center
Gantry structure
GT-630F
Product Overview
The GT-630F features a high-rigidity gantry-style structure, allowing three-axis motion to remain unaffected by workpiece weight while maintaining high-speed, high-dynamic machining performance.

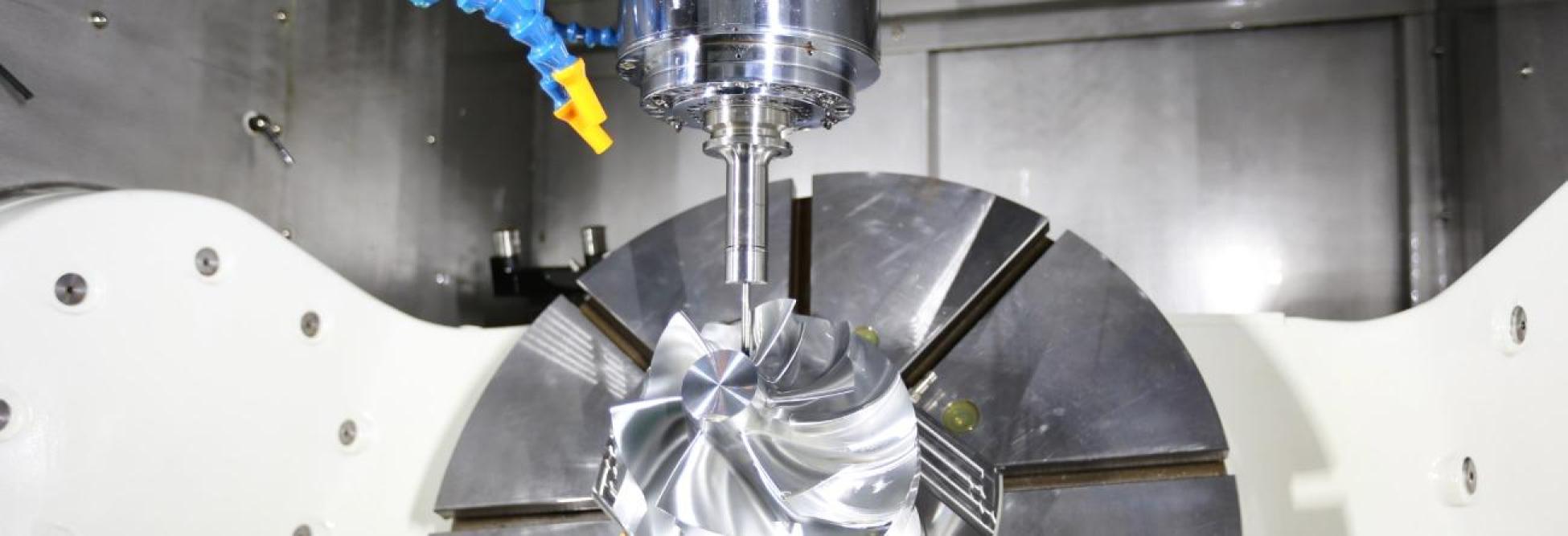

Equipped with a roller cam-driven A/C-axis rotary table, the machine delivers high torque and zero-backlash positioning. It is ideal for simultaneous five-axis machining of medium- to large-sized complex surface components, such as impellers and blades, achieving an excellent balance between precision and heavy-duty cutting capability.
Product Introduction
Gantry-Style Structure
The GT-630F features a high-rigidity gantry-style structure, allowing three-axis motion to remain unaffected by workpiece weight while maintaining high-speed, high-dynamic machining performance. Equipped with a roller cam-driven A/C-axis rotary table, the machine delivers high torque and zero-backlash positioning. It is ideal for simultaneous five-axis machining of medium- to large-sized complex surface components, such as impellers and blades, achieving an excellent balance between precision and heavy-duty cutting capability.
Short Force Flow & Center-of-Gravity Drive
The X- and Z-axes adopt a short force flow design, achieving a lightweight structure while significantly enhancing cutting rigidity.
The center of gravity of the Y-axis moving components is precisely positioned within the support range of the guide blocks, effectively eliminating forward tilting caused by spindle weight imbalance. This ensures excellent dynamic stability even during high-speed cutting and rapid motion changes.
Large-Capacity Tool Magazine
The tool magazine offers flexible configurations ranging from 32 to 80 tools to meet the demands of complex machining operations.
Combined with a cam-driven high-speed automatic tool changer, it provides reliable and efficient support for high-productivity production lines.
Excellent Accessibility & User-Friendly
The machine is designed for excellent operator accessibility, featuring a wide door opening and retractable protective covers.
This not only simplifies routine maintenance but also significantly improves the efficiency of lifting, loading, and unloading large workpieces.
" Access the e-catalog for complete technical data and configuration options "
Introduction Video
Product Specifications
Item
Value
X-Axis Travel
760 mm
Y-Axis Travel
820 mm
Z-Axis Travel
560 mm
A-Axis Travel
+30 ~ -120°
C-Axis Travel
±360°
X-Axis Rapid Traverse
48 m/min
Y-Axis Rapid Traverse
48 m/min
Z-Axis Rapid Traverse
48 m/min
A-Axis Rapid Traverse
25 rpm
C-Axis Rapid Traverse
25 rpm
Spindle Taper
7/24 Taper No.40 (1/10 Taper)
Spindle Speed
15,000 (opt. 20,000/24,000) rpm
Spindle Motor
40/40 [opt. (40/30)/(42/35)] kW
Table Size
Ø630 mm
Max. Table Load
600 kg
Tool Capacity
32 (opt. 40/64/80) pcs
Max. Tool Weight
8 kg
Machine Width
2,300 mm
Machine Depth
5,037 mm
Machine Height
3,760 mm
Machine Weight
16,000 kg
