Products
Electronics Processing
CNC PCB Routing Machine
DCRM-622
Product Overview
The DCRM series CNC routing machines are engineered for PCB blind routing, cavity opening, and precision depth-controlled processes. Featuring an independent Z-axis architecture with a high-precision measurement system and contact-type tool length compensation, the system ensures exceptional depth consistency and stability. Optimized structural and pressure foot designs minimize vibration and substrate deformation, guaranteeing long-term quality in mass production for advanced HDI, rigid-flex PCBs, and precision routing.
Product Introduction
Independent Z-axis Depth Control
Each spindle utilizes an independent Z-axis control architecture, paired with a high-precision depth measurement system and tool length compensation technology. This combination effectively enhances accuracy and consistency in blind routing, cavity opening, and depth-controlled routing processes.
Real-Time Broken Tool Detection
The real-time broken tool detection system actively monitors tool status during machining, minimizing risks of substrate scrapping, reworking, and quality anomalies caused by broken tools. Paired with depth-controlled and stable routing processes, it significantly enhances machining reliability and yield stability during long-term mass production.

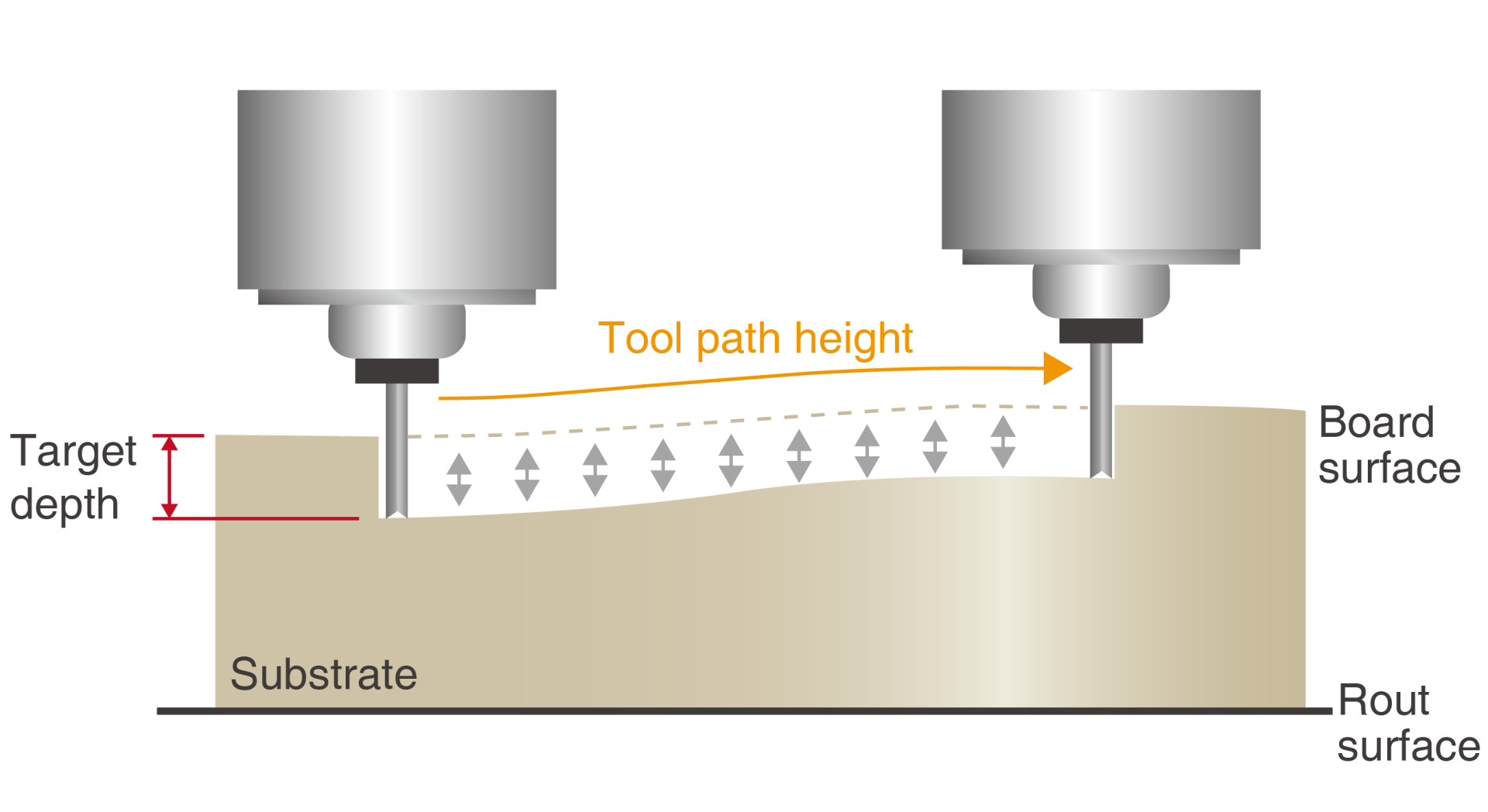

Surface adaptation and consistent depth
Through precision depth control technology, the system effectively compensates for height variations across the substrate surface, ensuring consistency in machining depth and remaining thickness control. Even when processing thick, warped, or uneven materials, it maintains stable routing quality to fulfill advanced PCB depth-controlled machining requirements.
" Access the e-catalog for complete technical data and configuration options "
Product Specifications
Item
Value
Number of Working Station
6
Working Area
560x720 mm
Spindle Max Rpm
60,000/80,000/125,000 rpm
Tool Magazine Capacity/Axis
200 PC/Axis
Tool Diameter
0.75~3.175 mm
XY-Axis Rapid Speed
30 m/min
Z-Axis Rapid Speed
15 m/min
Controller & Software
SIEB & MEYER CNC 93
