CT-350
Product Overview
The CT-350 Vertical 5-Axis Machining Center is designed for multi-face machining of precision parts and small molds, making it ideal for automotive, medical, and precision machinery applications where manufacturers aim to build five-axis capabilities within a controlled budget.
The machine combines a high-rigidity structure with a roller cam-driven A/C-axis rotary table, delivering zero-backlash positioning and stable machining performance. It also offers optional high-speed spindle configurations, enabling complex surface and multi-angle machining to be completed in a single setup. This approach reduces setup time and cumulative errors, while improving yield and enhancing delivery reliability.
Product Introduction
High-Rigidity Structure
The three-axis linear guideways adopt a wide-span design, enhancing structural rigidity and torsional resistance from the foundation.
Combined with roller-type linear guideways and double-nut preloaded ballscrew technology, the machine effectively suppresses thermal deformation during operation, ensuring excellent geometric accuracy even under long-duration heavy-duty cutting conditions.

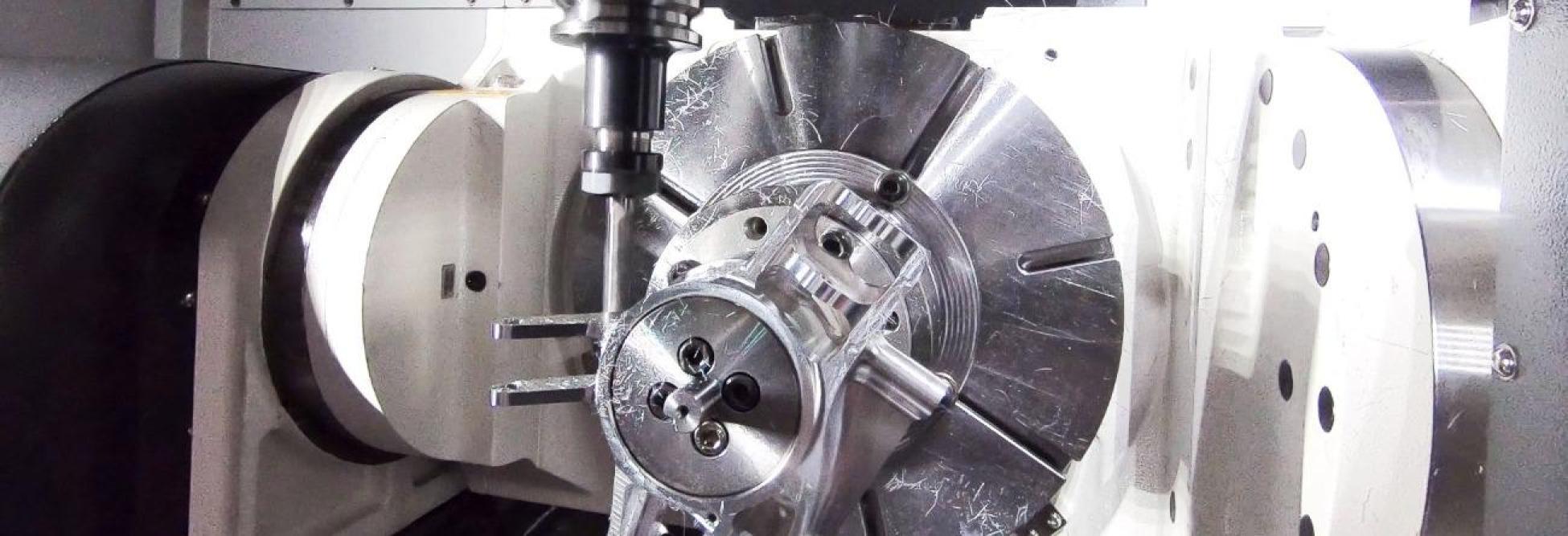

Roller Cam Rotary Table
The A/C axes utilize a roller cam drive mechanism, leveraging rolling contact characteristics to achieve low starting torque and fast rotational response. Compared with conventional worm and worm gear systems, this design provides zero backlash and extended service life. Even under long-term operation, it requires no adjustment, ensuring consistently high rotary positioning accuracy.
High-Performance Spindle
The spindle is equipped with oil-air lubrication and an oil-cooled spindle sleeve to effectively dissipate heat generated at high speeds, significantly reducing the impact of thermal expansion on machining accuracy.
Standard BBT dual-contact tool holders enhance clamping rigidity and reduce vibration, ensuring excellent machining stability and superior surface finish even during high-speed operation.
Large Tool Capacity
The tool magazine offers flexible configurations ranging from 24 to 40 tools to meet the demands of complex machining operations.
Combined with a cam-driven high-speed automatic tool changer, it provides reliable and efficient support for high-productivity production lines.
" Access the e-catalog for complete technical data and configuration options "
Introduction Video
Product Specifications
Item
Value
X-Axis Travel
400 mm
Y-Axis Travel
510 mm
Z-Axis Travel
510 mm
A-Axis Travel
+30 ~ -120°
C-Axis Travel
±360°
X-Axis Rapid Traverse
36 m/min
Y-Axis Rapid Traverse
36 m/min
Z-Axis Rapid Traverse
30 m/min
A-Axis Rapid Traverse
33.3 rpm
C-Axis Rapid Traverse
40 rpm
Spindle Taper
7/24 Taper No.40
Spindle Speed
15,000 (opt. 20,000) rpm
Spindle Motor
15/11/7.5 kW
Table Size
Ø350 mm
Max. Table Load
200 kg
Tool Capacity
24 (opt. 30/40) pcs
Max. Tool Weight
7 kg
Machine Width
2,150 mm
Machine Depth
3,104 mm
Machine Height
3,121 mm
Machine Weight
7,000 kg
